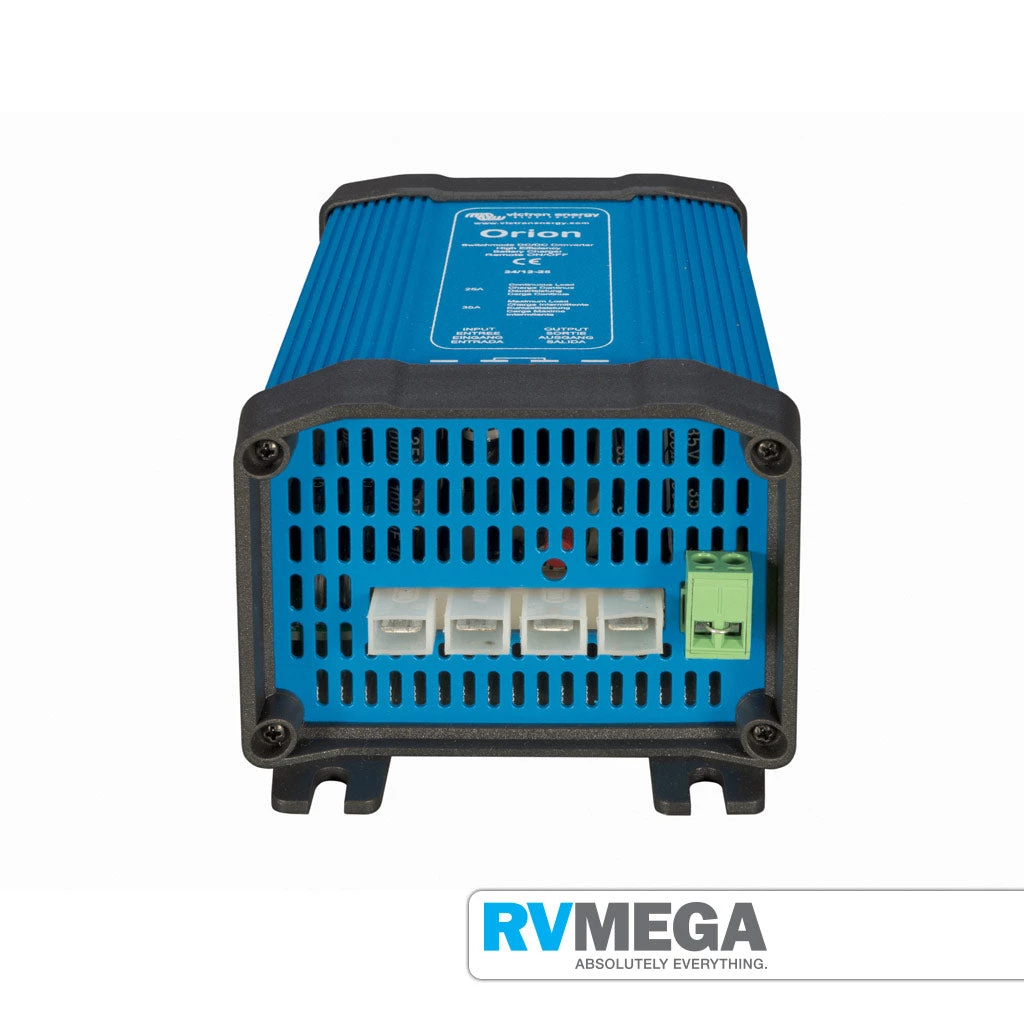

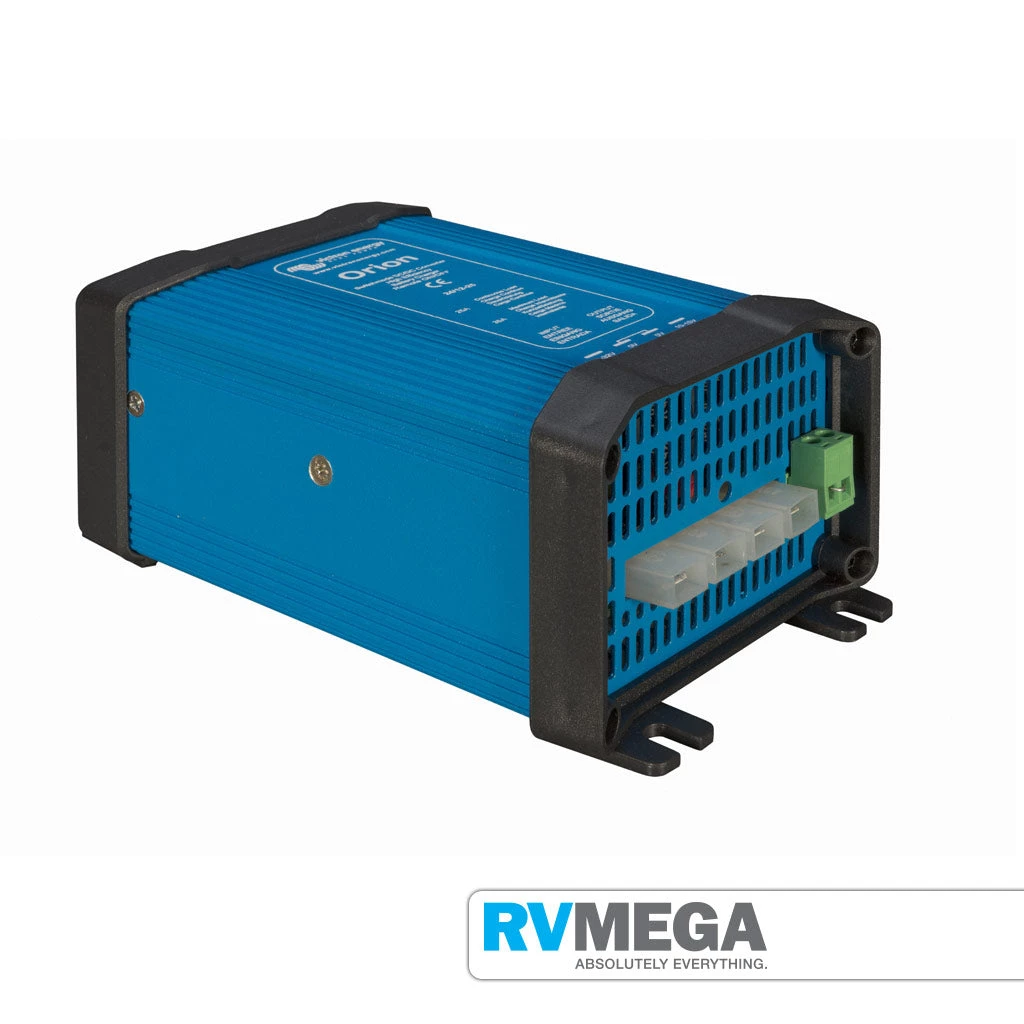

Orion DC-DC Converters Non-isolated, High power
The remote on-off eliminates the need for a high current switch in the input wiring. It can be operated with a low power switch or by the engine run/stop switch.
Can also be used as a battery charger or be paralleled to increase output current.
Dimensions
- W88 x H65 x D160mm
Features
-
Output voltage adjustable with a potentiometer
-

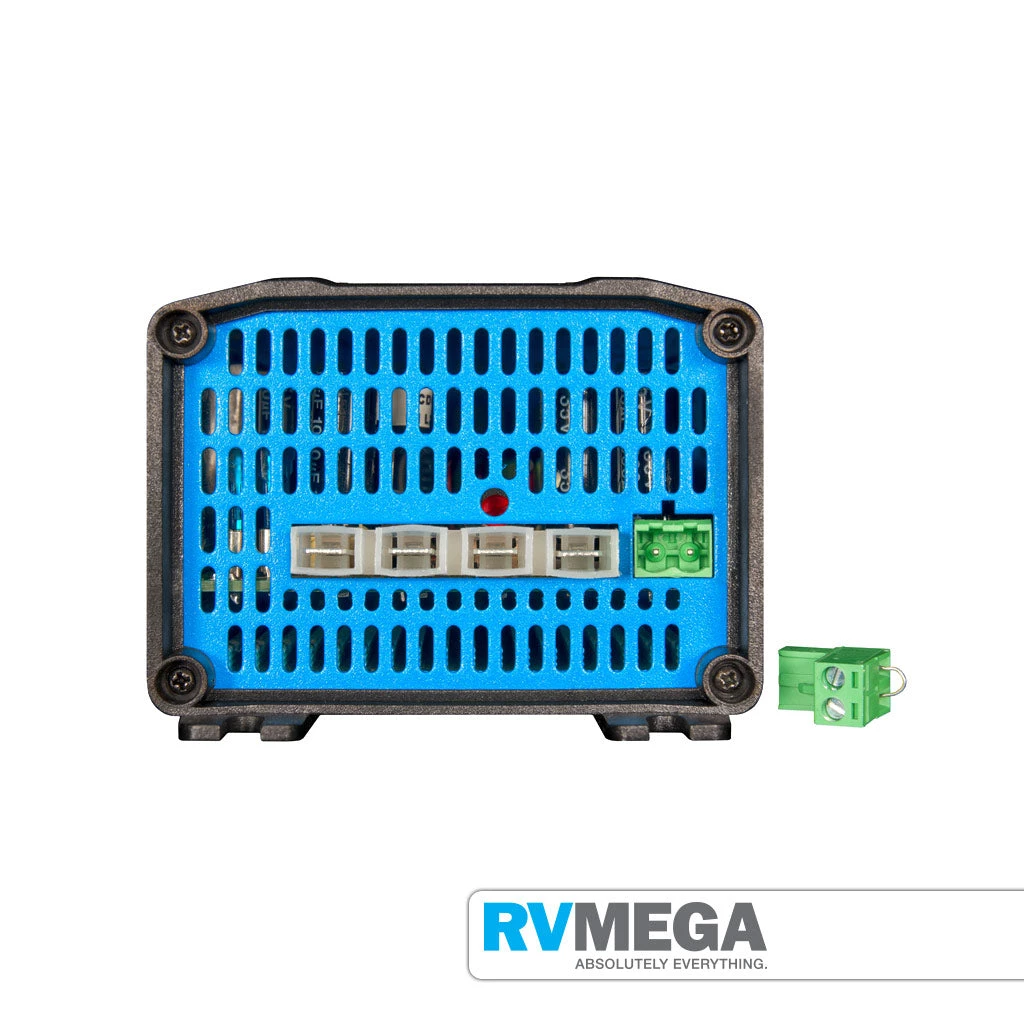

Remote on-off connector
-
High efficiency
-
Suitable to buffer-charge a battery
-
Can be connected in parallel – up to five units
-
Easy to install – includes four Insulated Fastons Female Crimp 6.3mm
-
DC connection: Faston tabs 6.3mm
-
Operating temperature range: -20 to +55°C
-
Weight: 0,7kg
Input voltage range 18-35V
Under voltage shutdown 14V
Under voltage restart 18V
Output voltage Adjustable 10–15V F set 13,2V
Efficiency 96%
Continuous output current 25A
Max. Output current 35A
Off load current < 15mA
