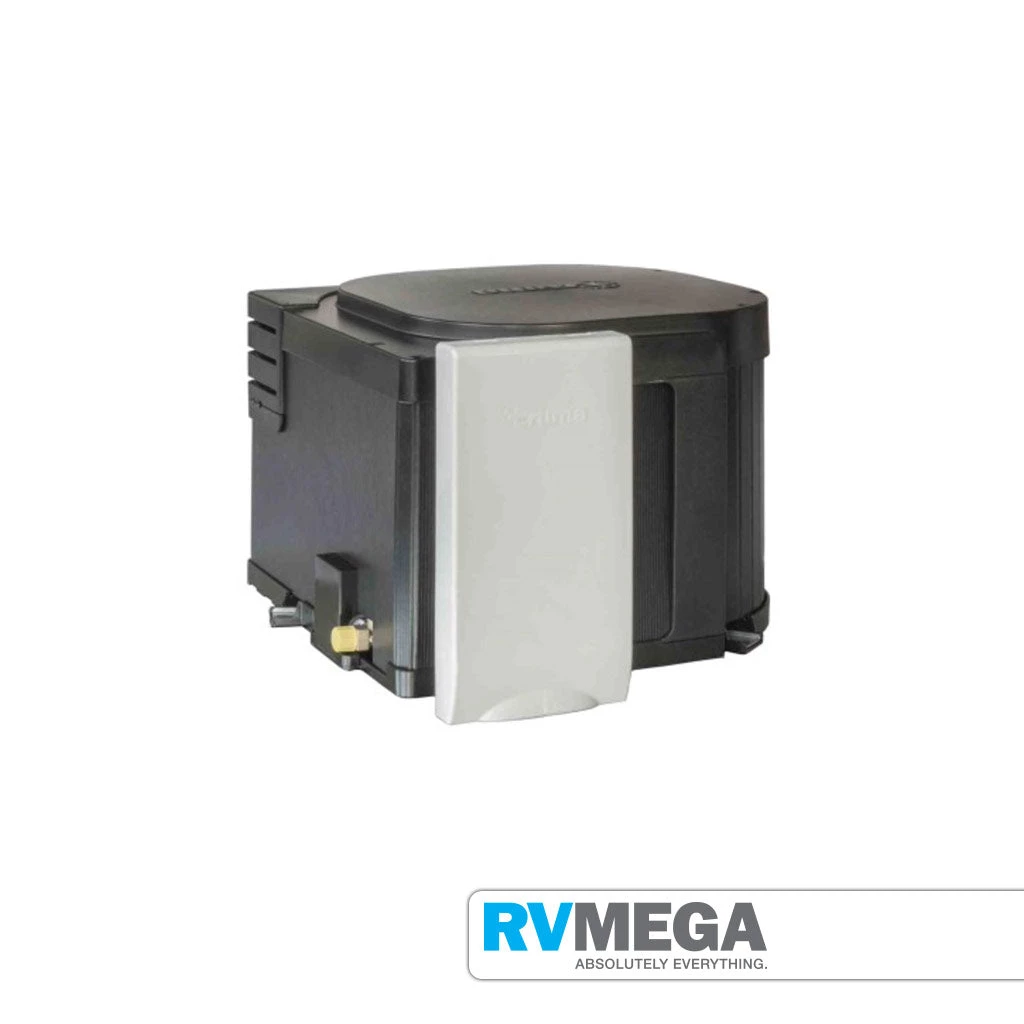

Truma Water Heater Gas/Electric 10 Litre Heating – Water & Air

• Powerful 1500 Watt gas burner heats the water within a short time.

• The control panel is used to set the required temperature of either 50°C or 70°C. It’s compact dimensions allow the equipment to be installed in the vehicle without taking up too much space.

• Electronic controls and the pressure relief valve provide maximum safety .

• Thermostat-controlled shut-off and re-ignition facilities save valuable energy.

• Closed combustion system with wall cowl is totally maintenance-free.

• Economical gas consumption due to the high efficiency level of approx. 95%

• This boiler has an integrated 850 Watt 240v heating element – for even faster and more flexible water heating.

You can heat the water 3 different ways:

• Gas only (31 min)

• Electric Mains only (29 min)

• Gas and Electricity (16 min)

• Heating times from 15°C to 70°C

Technical Specs:

• Heating power: 1500 W

• Gas consumption: 120 g/h

• Power consumption at 12 V: Ignition: 0.17A, Water heating: 0.08A, Standby: 0.04A

• Power consumption of electric heating element @ 230V: 850W or 3.7A

• Operating pressure: 30 mbar

• Maximum water intake pressure is 40PSI. For plumbing systems with a higher pressure than this, a reducing valve is supplied and must be fitted in line to ensure the supply water pressure is reduced sufficiently.

Please note:

• Supplied with water connection kit to suit 12mm John Guest push fit pipe.

• Pump pressure must not be higher than 40 PSI.

• Installation must be done by a qualified gas fitter.
