Suburban 22 Litre Gas Water Heater – Switch Ignition Heating – Water & Air

The new line of WaterMark certified Suburban water heaters are the same great product you know and trust. Their high recovery gas and gas electric models come in sizes and with the features to match the requirements of almost any RV!

The Suburban HWS range all have porcelain lined, high tensile steel tanks, which are pressure tested twice assuring tank integrity and life.

There are a number of gas and gas-electric models available to suit most hot water requirements while travelling. The automatic models feature direct spark ignition with a remote switch for on/off control from inside the RV. Gas consumption is also kept to a minimum, making Suburban an economical choice.

Dimensions

• Cut-out: W320 x H320 x D500mm (550mm including fittings)

• Door size overall: 380 x 380mm

Features

• Operates on universal gas only

• Long life: porcelain lined, steel water heater tank with an anode rod to “absorb” the electrolytical action – just like your water heater at home

• Fast recovery: 40 l per hour

• Convenient – All Suburban Water Heaters are designed for easy installation, operation and maintenance.

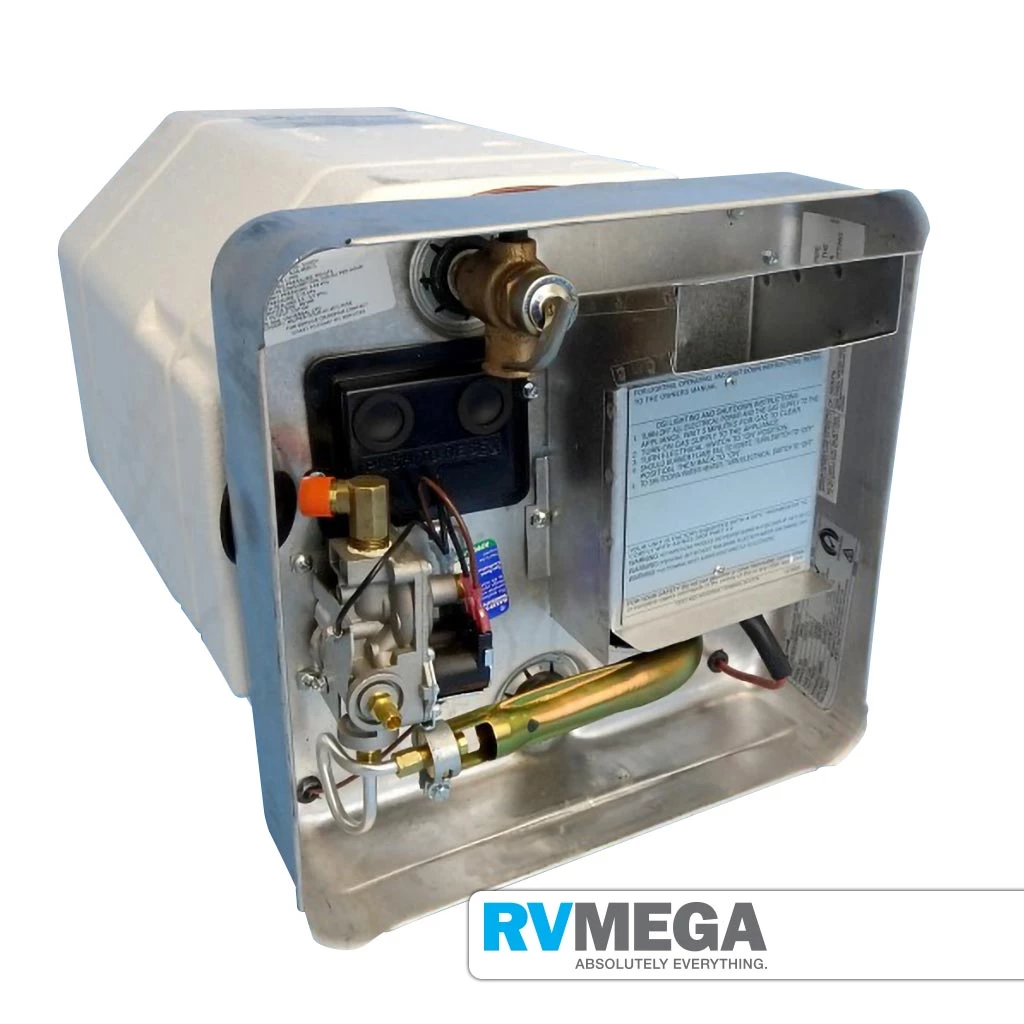

• The limit switch and reset button are conveniently located in a housing behind the removable outer door. The electric heat element and combination drain plug/anode rod are also located there.

• Meets new NZ gas regulations and *NZ/Australian WaterMark certification scheme

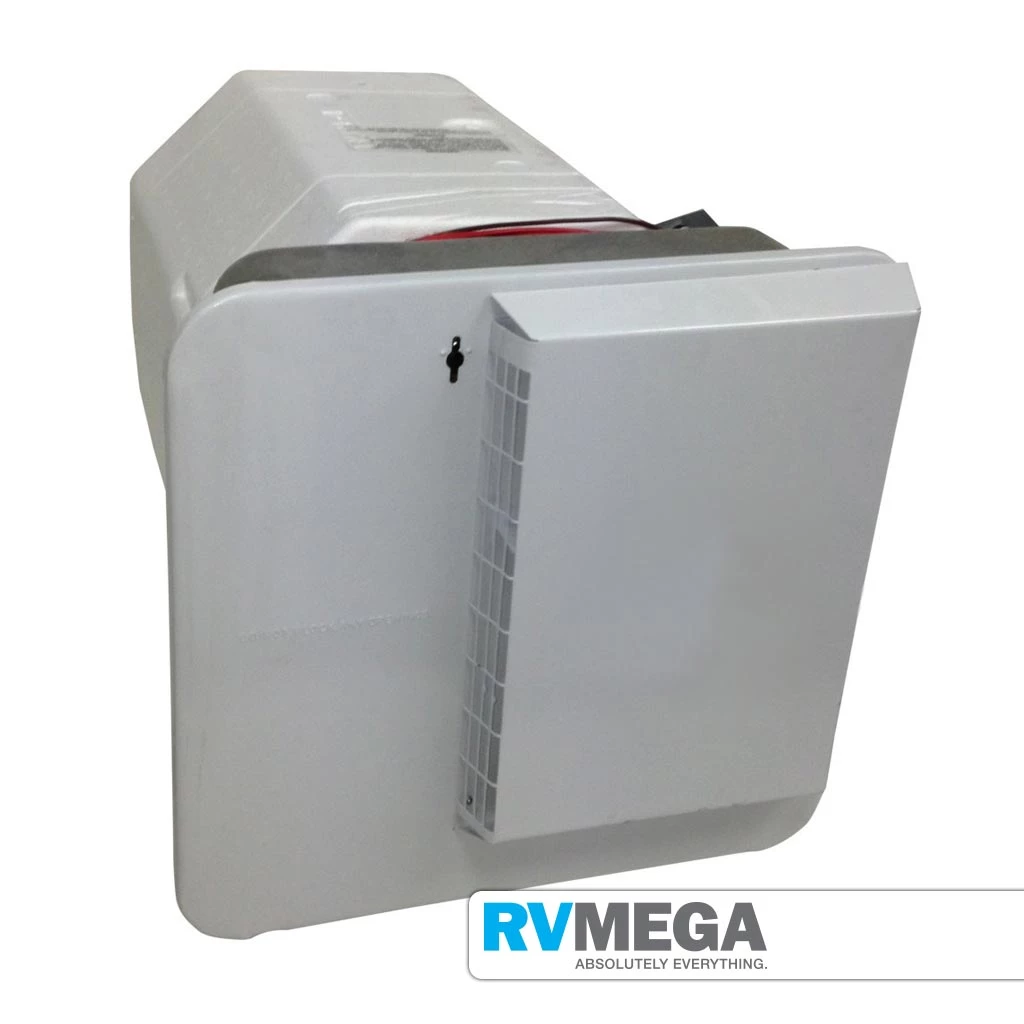

• Includes service door

• Capacity: 22.6l

Max working pressure 850Kpa

Hourly gas consumption 9.60mj/hour

Test point pressure 2.63Kpa

Jet orifice size 0.89mm

Type of heating medium Universal Gas

Recovery 40Lt/hr 45ºC rise

For automatic gas ignitor 12Volt DC

Burner rating 12,000 btu (approx) 4kW

Fuel LPG

Declaration of conformity available

A qualified Gas Fitter is required to install this product
