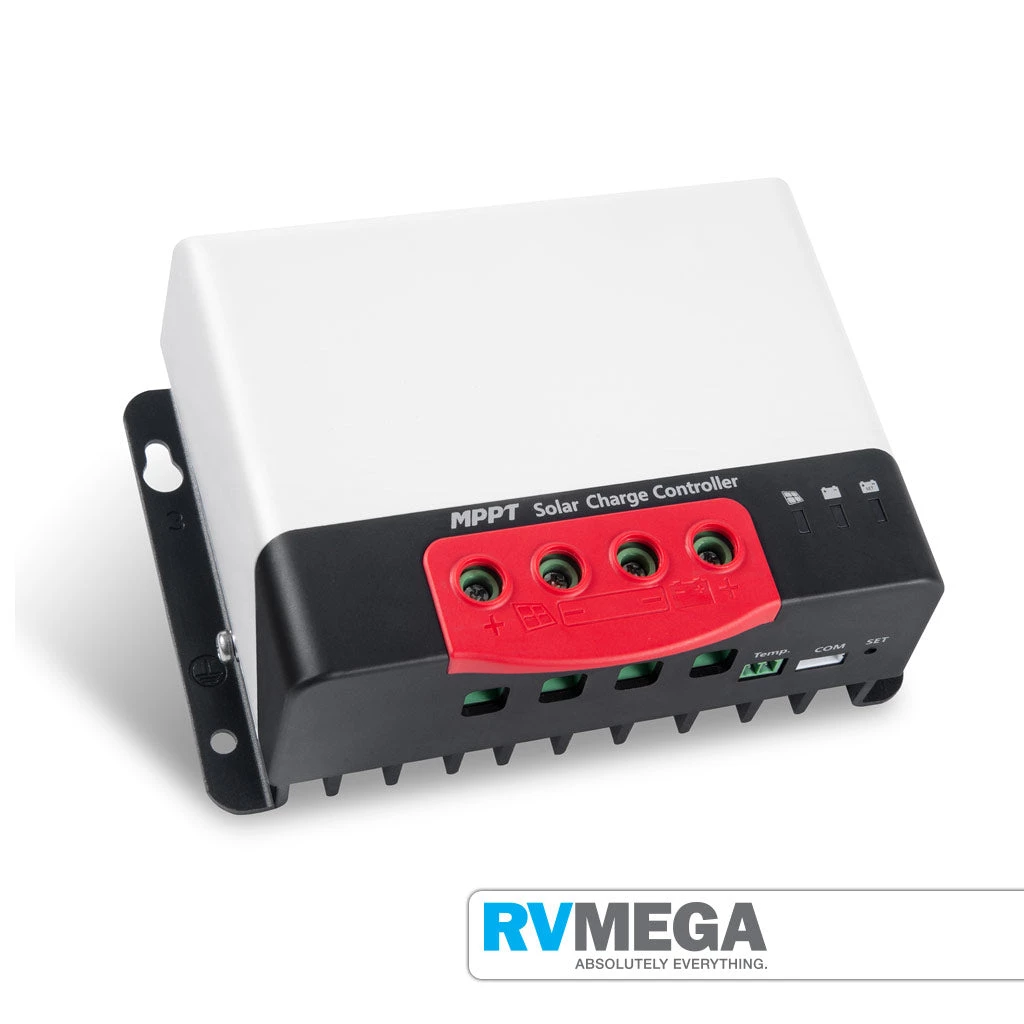

SRNE MC SERIES – 20AMP MPPT Solar Regulator

MC SERIES 20A MPPT charge controller. Supports multiple battery types and charging profiles including 12V/24V Lithium LiFeP04, Flooded, GEL, Sealed and User Defined Profile. Auto Protection and temperature modes, Auto load control functions. Fast and effective charge control.

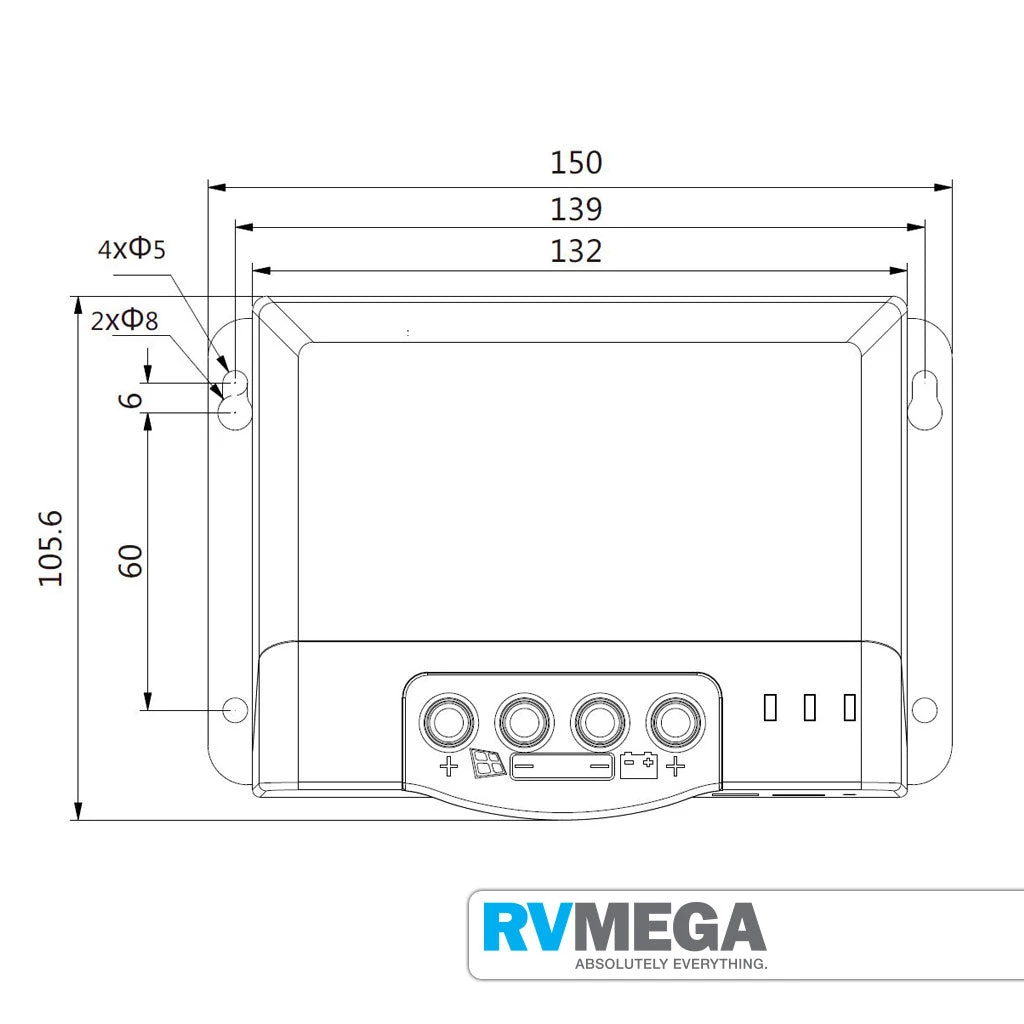

Dimensions

• W150 x H105 x D62mm

Technical Specifications

• Operating Voltage: 12V / 24 (Automatic Detection)

• Max Input Voltage of PV Panel: 100V

• Max PV Input Power: 260W (12V) / 520W (24V)

• Stand by self consumption: <10mA

• Charge current: 20A

• Conversion Efficiency: 98%

• MPPT Tracking Efficiency: 99%

• Battery Type | Flooded (FLD) | Sealed (SLD) | GEL (GEL) | Lithium (Li)

Equaliszing Charge Voltage: Flooded (FLD) 14.8 | Sealed (SLD) 14.6 | GEL (GEL) – | Lithium (Li) –

Boost Charge Voltage: Flooded (FLD) 14.6 | Sealed (SLD) 14.4 | GEL (GEL) 14.2 | Lithium (Li) 14.4V

Float Charge Voltage: Flooded (FLD) 13.8 | Sealed (SLD) 13.8 | GEL (GEL) 13.8 | Lithium (Li) –

• Communication method: TTL Serial Communication

• IP Rating: IP32

• Working temperature: -35°C ~ +60°C

• Weight: 650gms
