Uniseal size 25.
Dimensions
-
Pipe ID: 1”
-
Pipe OD: 1.75” – 33mm
-
Holesaw size: 44.4mm
Features
-
Long life
-
Easy to install
-
Replaces most bolt-on flanges
-
Can withstand pressure up to 65 PSI and suction, acids and oils, sewerage and waste, heast and cold
Directions of use
-
Cut hole to the Holesaw size indicated for the UNISEAL you are using.
-
Ensure that the hole is clean cut with sharp edges. Irregularities could cause poor seating and leakage.
-

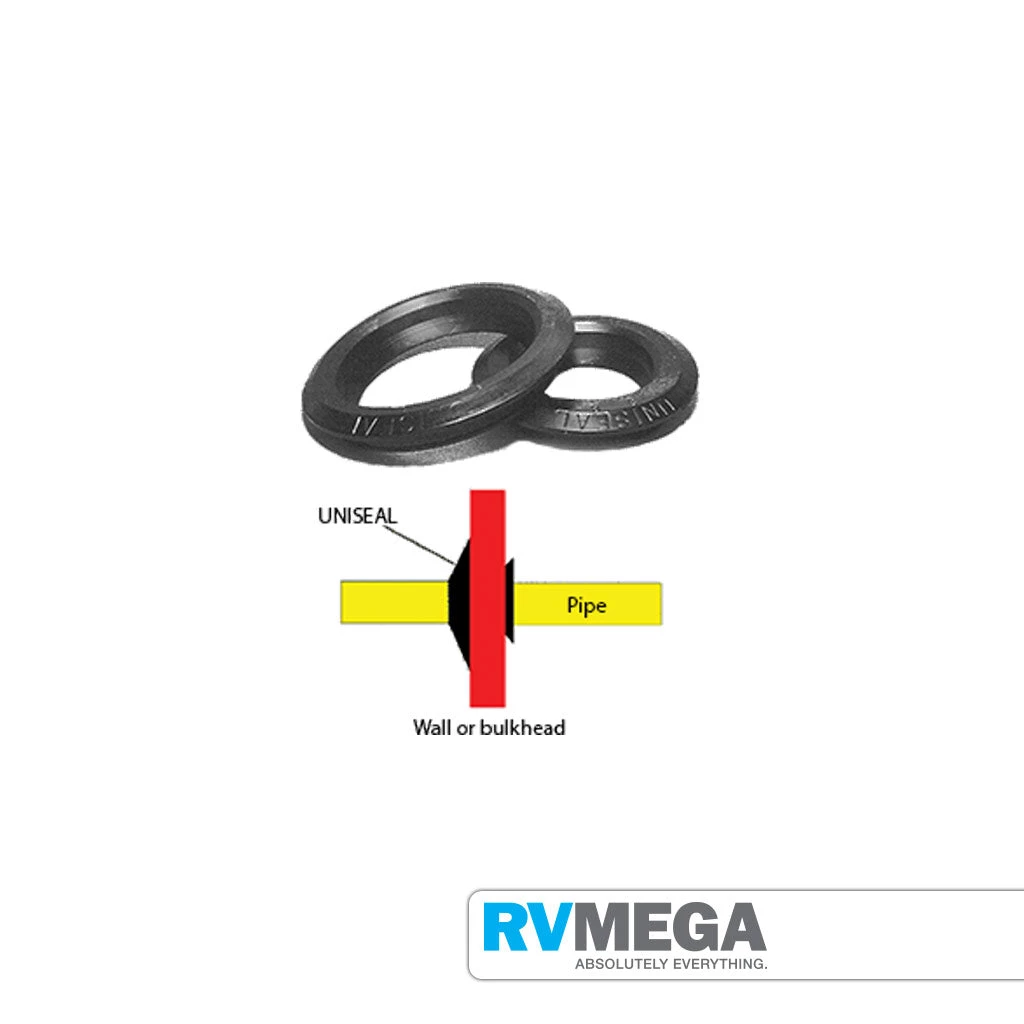

Insert the UNISEAL into the hole with the wide side facing the pipe to be inserted.
-
Make certain that the pipe end to be inserted is clean cut. File the edges so that there are no sharp points to cut UNISEAL.
-
Using Detergent, lubricate the outside of the pipe end to be inserted, then push the pipe through the UNISEAL from the large flange side. The detergent will be squeezed off as the pipe passes through the UNISEAL. The co-efficient of friction of the rubber holds the pipe tightly in place.
