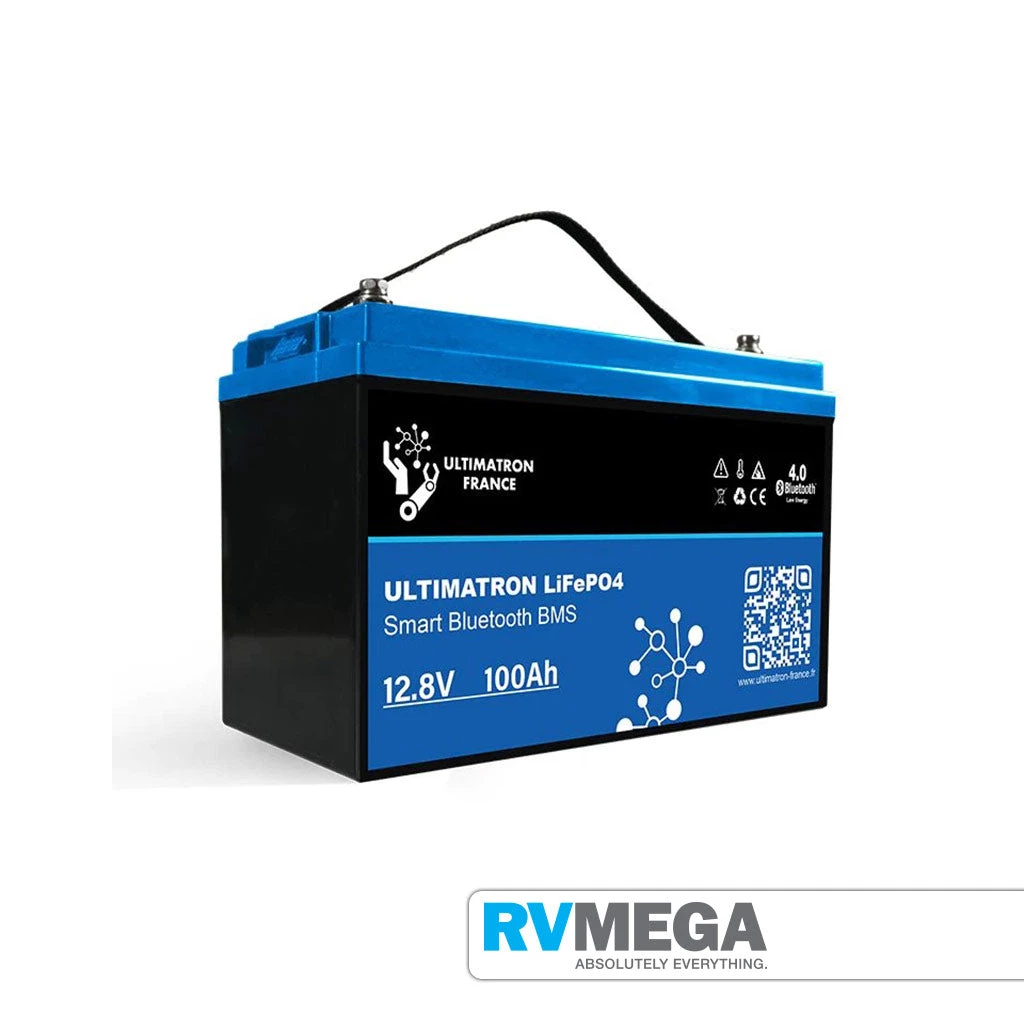

RV MEGA Ultimatron Lithium Battery UBL-12V-100AH – Bluetooth Monitor

The Ultimatron UBL-12V-100Ah is the top seller among Ultimatron’s lithium batteries. The 100Ah model has the perfect balance between capacity and maximum performance, and is also cheaper than the competition’s 100Ah models! Ultimatron batteries feature excellent high current capability, which is of utmost relevance in the carhifi sector. In addition, each battery is equipped with a Bluetooth module, which allows the monitoring of the battery voltage, etc. via mobile phone in real time!

Available for Click & Collect. If you would like this shipped, additional shipping costs will apply. Please contact us for a shipping quote.

Key specifications:

• Quiescent voltage: 12.8V

• Continuous power: 1920 Watt

• Maximum power (3-5 seconds): 5760 Watt

• Capacity: 100Ah

Compared to traditional batteries, the Lithium Iron Phosphate batteries (LiFePO4) offer many advantages:

• Manufacturer warranty 3 years

• The safest technology with no risk of fire or explosion

• Long life span

• Continuous improvement of the storage capacity

• High stability even under extreme loads

• No memory effect, no complete charge and discharge cycles required

• High performance even under extreme conditions

• Deep and regular discharge and charge efficiency

• Small size and low weight

Integrated Battery Management System (BMS) :

• Enables the control and charging of the various elements of a battery and protects it from overcharging, overvoltage and overheating.

Integrated Bluetooth 4.0 Monitoring :

• Enables the control and charging of the different elements of a battery and protects them from overcharging, overvoltage and overheating. You always have all the important battery data on your smartphone or tablet. The application displays the data in real time.

Technical data:

• Model : UBL-12V-100Ah

• Nominal capacity : 100Ah / 1280Wh

• Operating voltage range : 10-14.6 V

• Nominal voltage : 12.8 V

• Number of cycles : =3000 @ 80% DoD.

• Charging characteristics : CCCV / IU

• Charging voltage : 14.6V

• Maximum charging current Recommended : 20A

• Maximum charge current : 50A

• Discharge current : 150 A

• Peak discharge current : 450 A!

• BMS Battery Management System : Integrated

• Monitoring : Bluetooth 4.0 with smartphone app

• Connection application : series and parallel connection for 12V, 24V , 36V ,48V applications.

• Protection : IP65

• Temperature range (discharge) : -20 ~60°C

• Temperature range (charge) : 0 ~45°C

• Temperature range (storage) : -5 ~35°C

• Connecting screw : M8

• Warranty : 3 years manufacturer warranty

• Weight : 11.7 kg

• Dimensions (L x W x H)in mm : 328 x 172 x 212 mm
