RV MEGA Solar Panels & Accessories 200W Solar Panel Canvas Blanket With Accessories

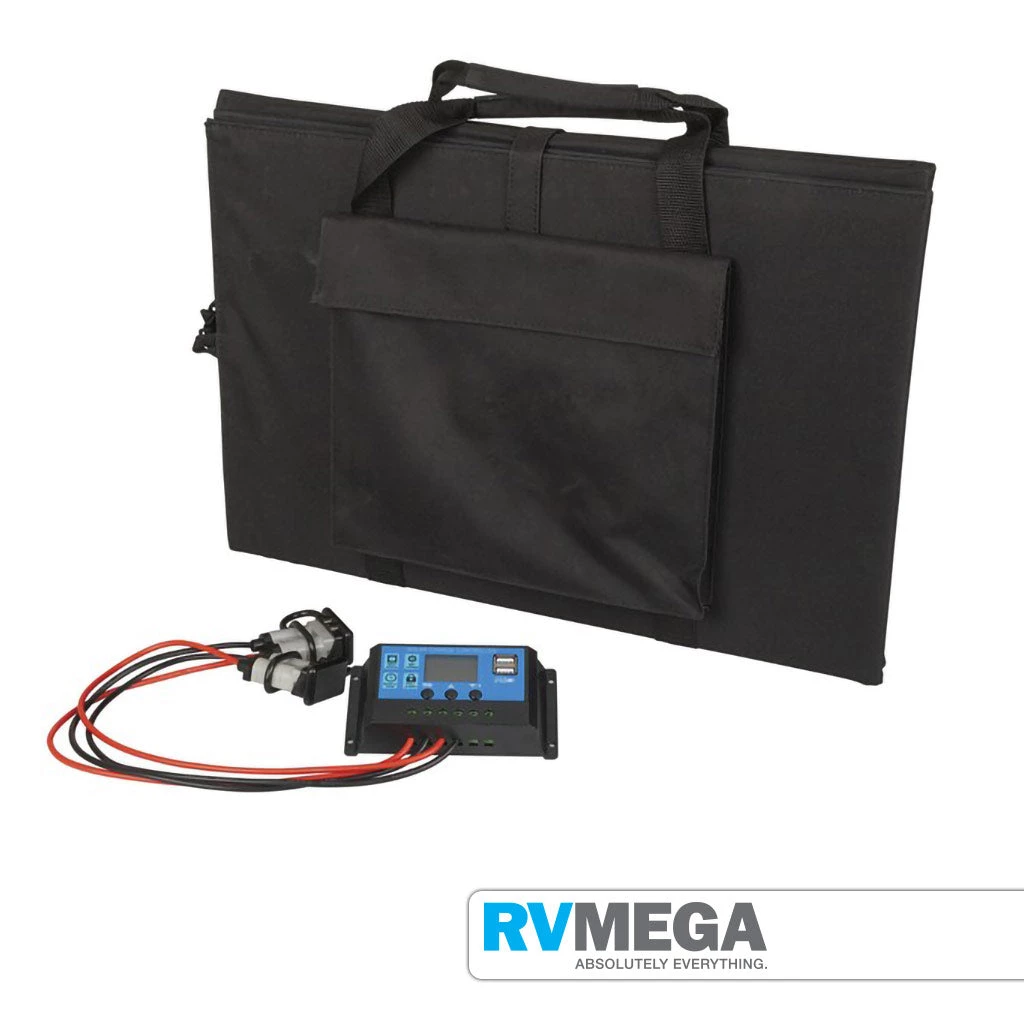

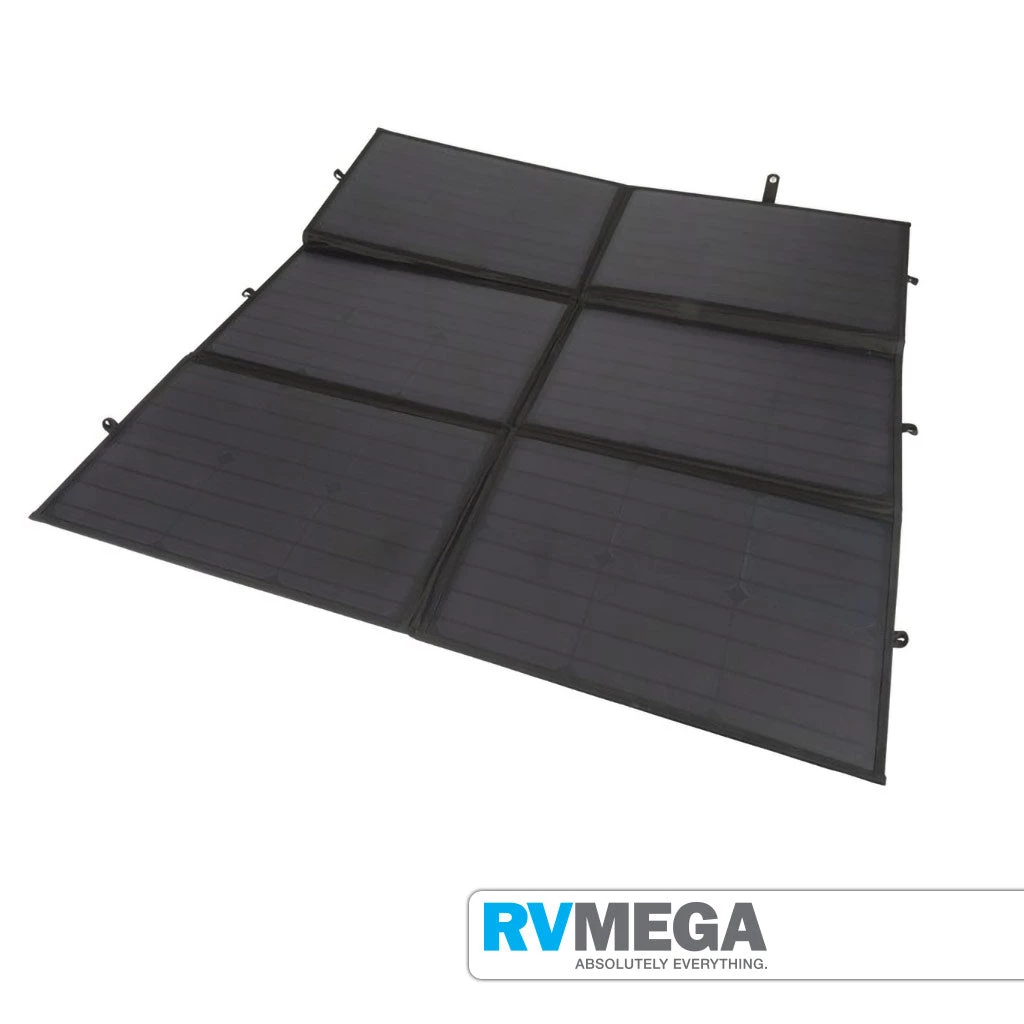

Blanket solar panels are much lighter and take up less space compared to traditional fold-up solar panels. This 12V 200W solar panel weighs just 6.8kg. When not in use, it folds down to just 512mm wide by 360mm high, small enough to easily stow away in a storage cupboard. When you want to use it, simply unfold and lay on the ground or across your car’s windscreen. A charge controller is included, so you can connect directly to a GEL, flooded or SLA battery without any additional hardware. The charge controller also includes a 2A USB charging outlet, perfect for charging mobile phones, tablets, and other devices in an emergency. Built with high grade monocrystalline solar panels, and safety features including short circuit, open circuit, reverse polarity, overload, and dual MOSFET reverse current protection. A carry bag is supplied with a built-in pouch for accessory storage.

Dimensions

• Unfolded: W1070 x D1032mm

• Folded: W512 x D360mm

• Charge Controller: W134 x H34 x D70mm

Features

• 3-stage PWM charge management

• USB 2A USB Port

Charger Specifications

• Solar Charge Controller

• System Voltage: 12/24V Auto

Battery Equalisation

• Sealed: 14.4V

• GEL: 14.2V

• Flood: 14.6V

• Float Charge: 13.7V (Default, Adjustable)

• Discharge Stop: 10.7V (Default, Adjustable)

• Discharge Reconnect: 12.6V (Default, Adjustable)

• USB Output: 5V, 2A

• Self-Consumption: <10mA

• Operating Temperature: -35 ~ 60°C

Specifications

• Charge Controller Technology: Pulse Width Modulated (PWM)

• Max PV Open Circuit Voltage: 48.0V

• Max Charging Current: 20.0A

• Max Load Current: 20.0A

• Solar panel type: Monocrystalline

• Mounting Method: Folding Portable

• Open Circuit Voltage: 23.7V

• Short Circuit Current: 9.8A

• Voltage at Power Max: 18.0V

• Current at Power Max: 9.5A
