RV MEGA SHINGLED PERC MONO – 195W SOLAR PV PANEL 24V Essential Items

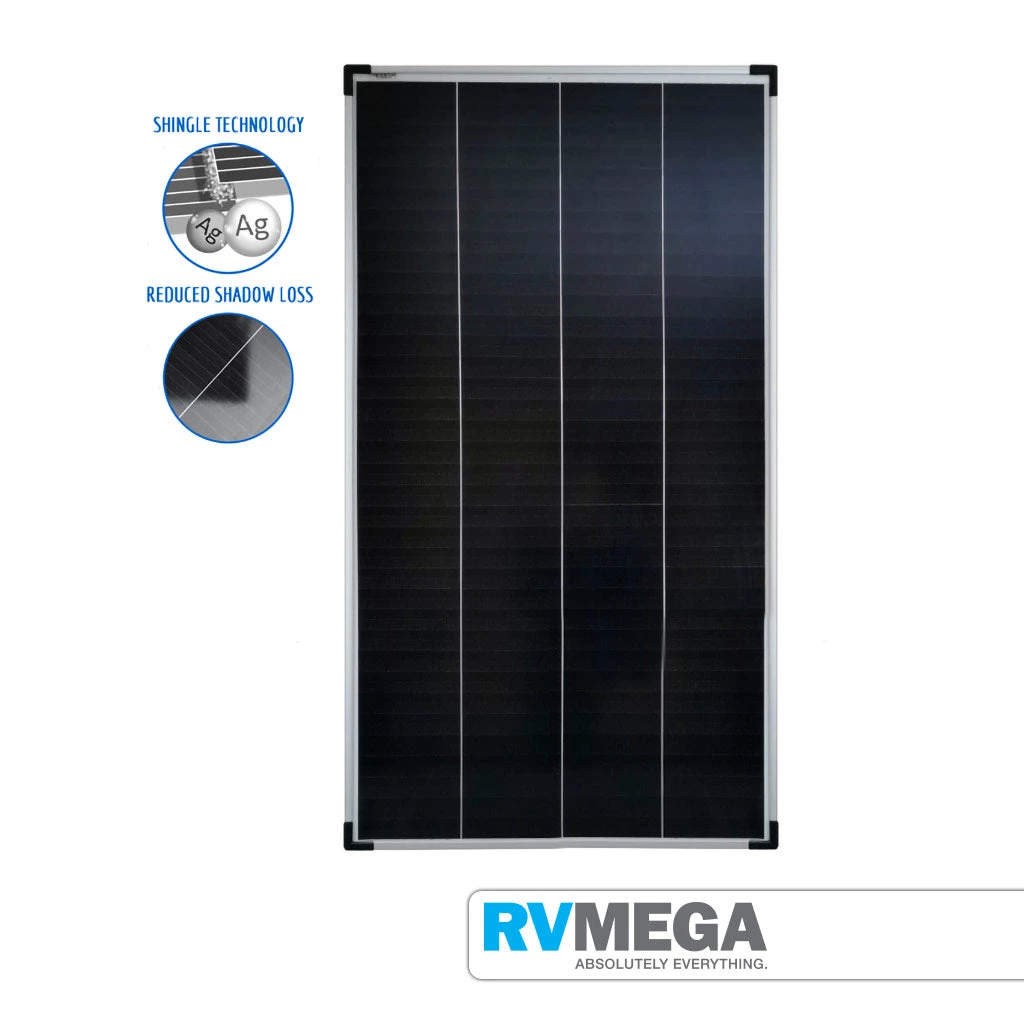

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

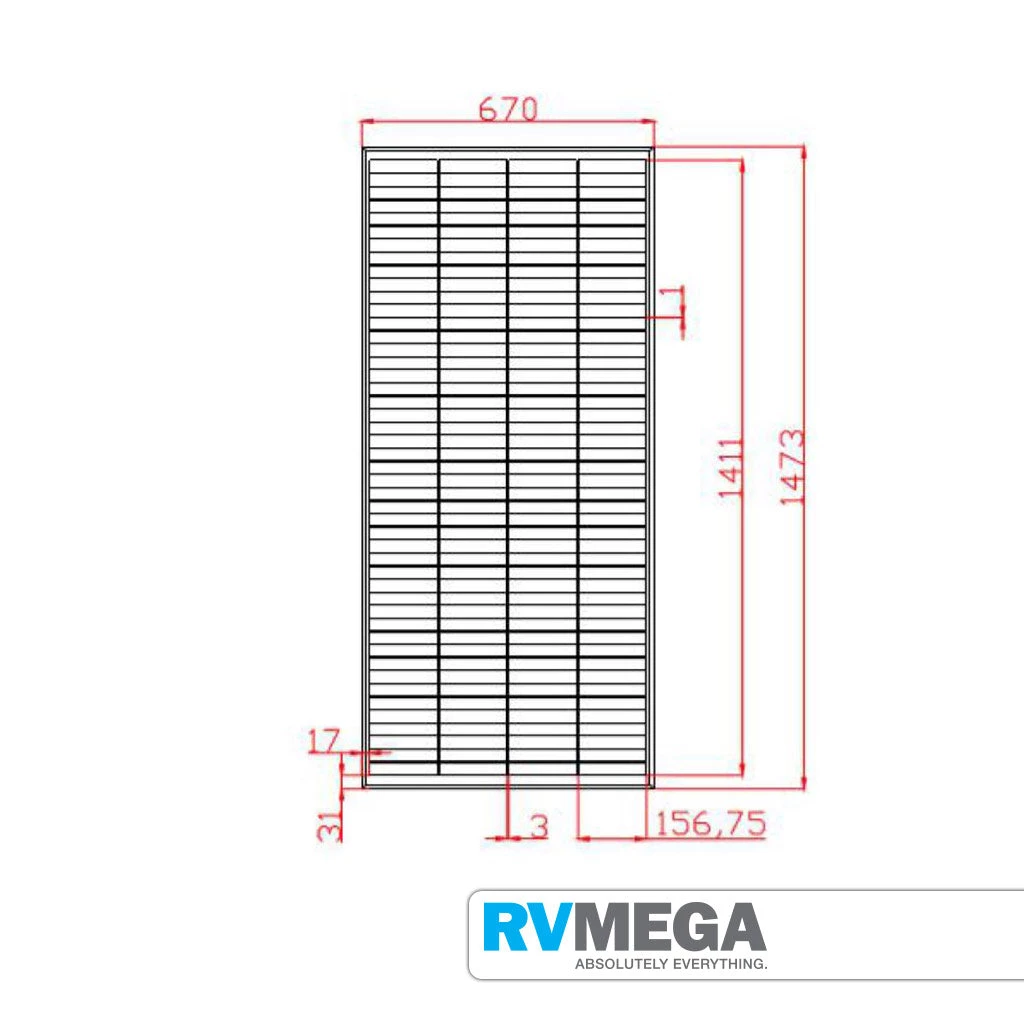

Dimensions

• W1473 x H35 x D670mm

Features

• PERC Solar cells with shingle technology

• Reinforced frame with aluminium angle

• 35mm Frame with a support surface of 1.2mm thickness

Advantages

• More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.

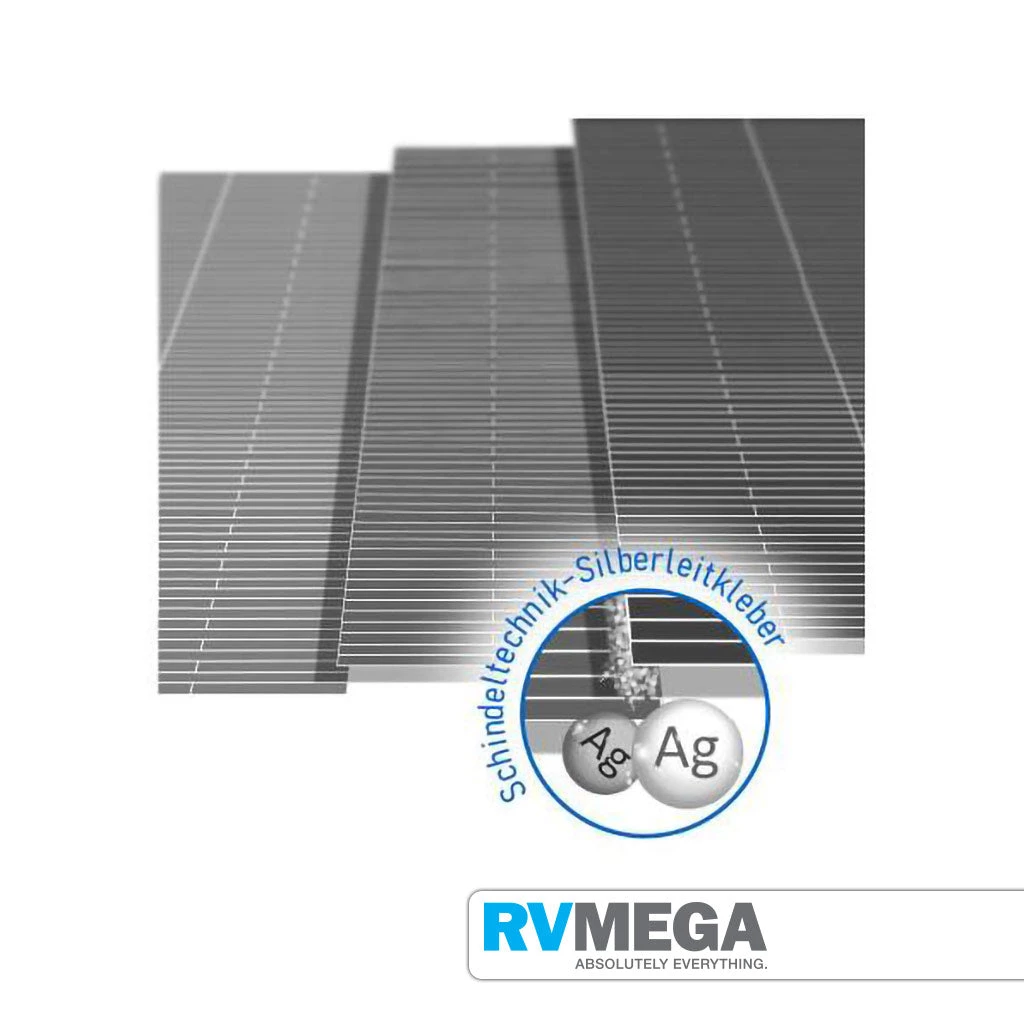

• Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.

• Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.

• Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.

• Stability Enhanced reliability and stability. Significantly reduces hot spot effect.

• Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.

• Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specifications

• Peak Power (Pmax): 195.00W

• Max Power Voltage (Vmp): 21.76V

• Max Power Current (Imp): 9.04A

• Open Circuit Voltage (Voc): 31.34V

• Short Circuit Current (Isc): 7.95A

• Module Efficiency: 19.75%

• Max Systems Voltage (V): 1000V

• Pmax Temperature Coefficient (W/°C): – 0.41%

• Voc Temperature Coefficient (V/°C): – 0.31

• Isc Temperature Coefficient (A/°C): 0.05%

• Nominal Operating Cell Temp (NOCT): 48±2

• Operating Temp: -40 to +85C

• Cell Type: PERC Shingled MONO

• Cell Quantity: 188 CELL

• Weight: 12Kg

• Front Glass: 3.2mm High Transmission, Low Iron, Termpered Glass

• Surface Load: 5400Pa

• Junction Box: IP65 Rated

• Output Cables: MC4, 2.5mm2 900mm
