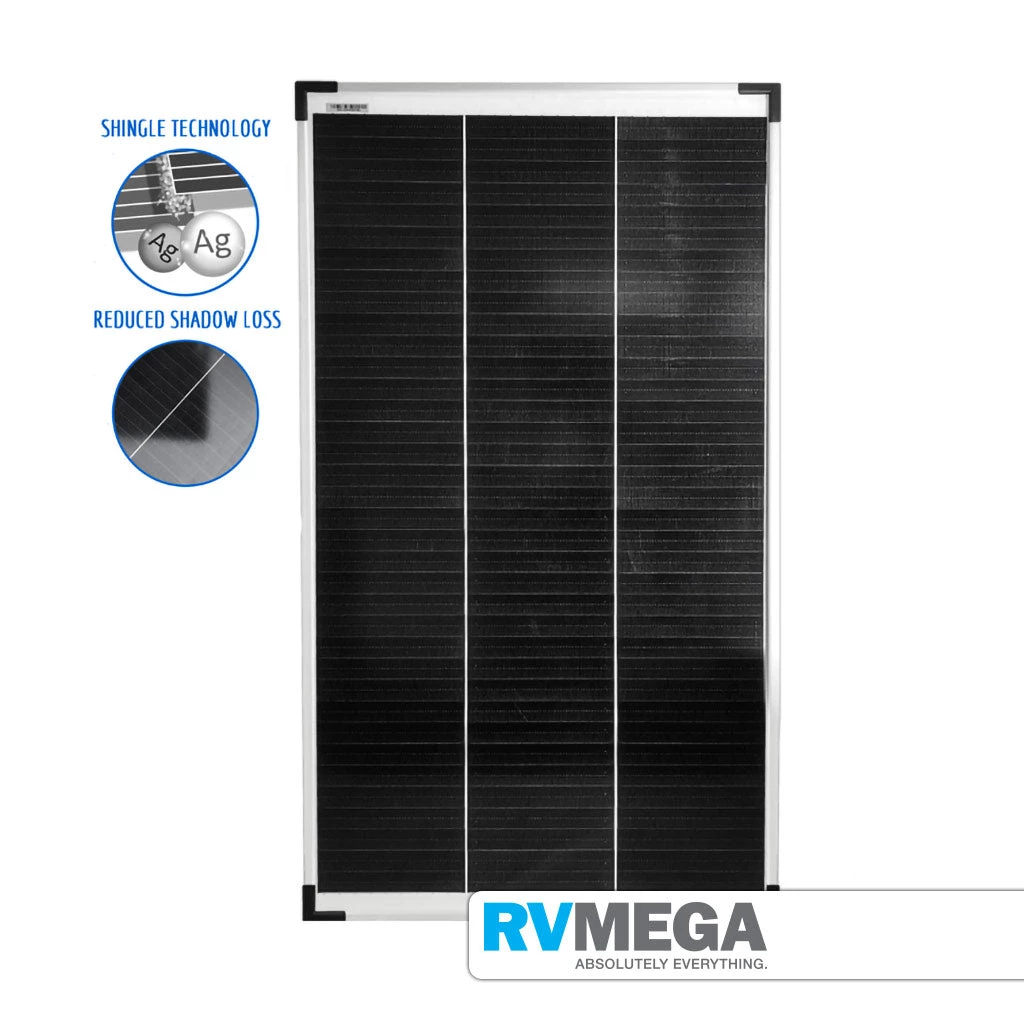

RV MEGA SHINGLED PERC MONO – 100W SOLAR PV PANEL

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

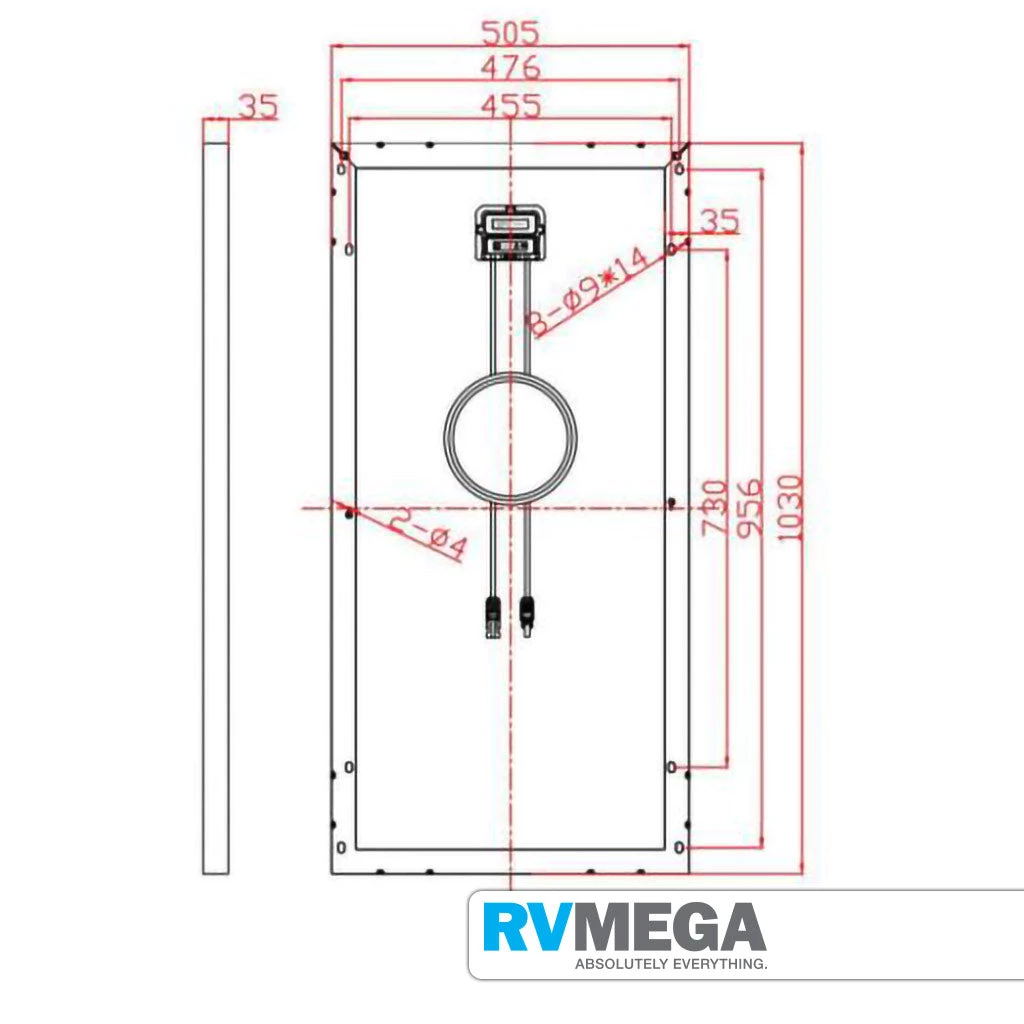

Dimensions

• W1030 x H35 x D505mm

Features

• PERC Solar cells with shingle technology

• Reinforced frame with aluminium angle

• 35mm Frame with a support surface of 1.2mm thickness

Advantages

• More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.

• Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.

• Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.

• Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.

• Stability Enhanced reliability and stability. Significantly reduces hot spot effect.

• Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.

• Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specifications

• Peak Power (Pmax): 100W

• Max Power Voltage (Vmp): 18.20V

• Max Power Current (Imp): 5.50A

• Open Circuit Voltage (Voc): 22.68V

• Short Circuit Current (Isc): 5.66A

• Max Systems Voltage (V): 1000V

• Module Efficiency: 19.2%

• Pmax Temperature Coefficient (W/°C) : – 0.41%

• Voc Temperature Coefficient (V/°C): – 0.31%

• Isc Temperature Coefficient (A/°C): 0.05%

• Nominal Operatings Cell Temp (NOCT): 48±2

• Operating and Storage Temp: -40 to +85°C

Mechanical Characteristics

• Cell Type: PERC Shingled MONO

• Cell Quantity: 108 CELL

• Weight: 5.8Kg

• Front Glasss: 3.2mm High Transmission, Low Iron, Termpered Glass

• Surface Load: 5400Pa

• Junction Box: IP65 Rated

• Output Cables: MC4, 4mm2 900mm
