RV MEGA Omron Air Sensor For New Propex

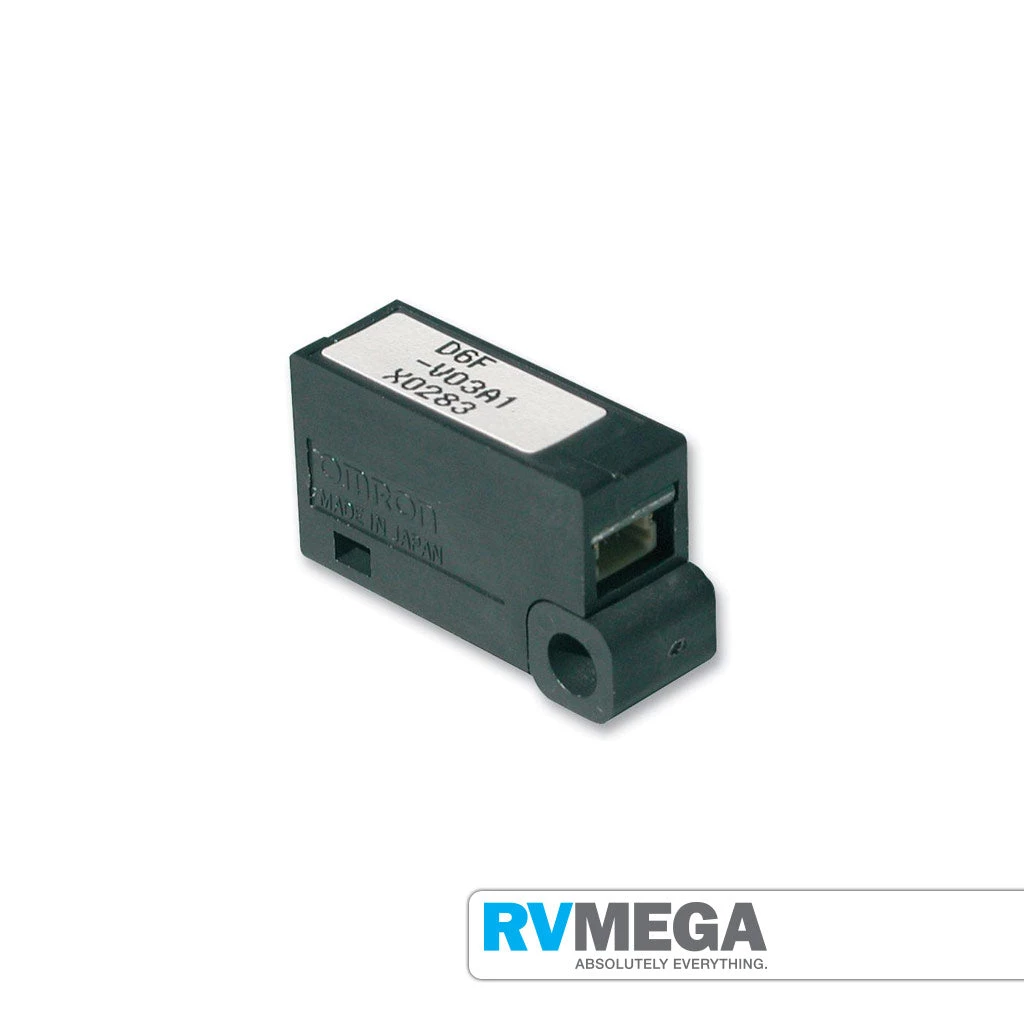

The D6F-V03A1 is a MEMS Mass Air Flow Sensor with thermoplastic resin case. This sensor is a dust-resistant design has been taken into consideration, by the original dust segregation structure. It features ±10% full-scale repeatable accuracy achieves consistent air velocity measurement. Suitable for clogged-filter detection and air velocity.

Dimensions

• W24 x H14 x D8mm

Features

• Sensing Range: 0 ~ 3 m/s

• Flow Sensor Type: Air

• Voltage – Input: 3.15V ~ 9.45V

• Port Size: 2mm x 3mm

• Material – Body: Thermoplastic resin

• Operating Temperature: -10°C ~ 60°C (TA)
