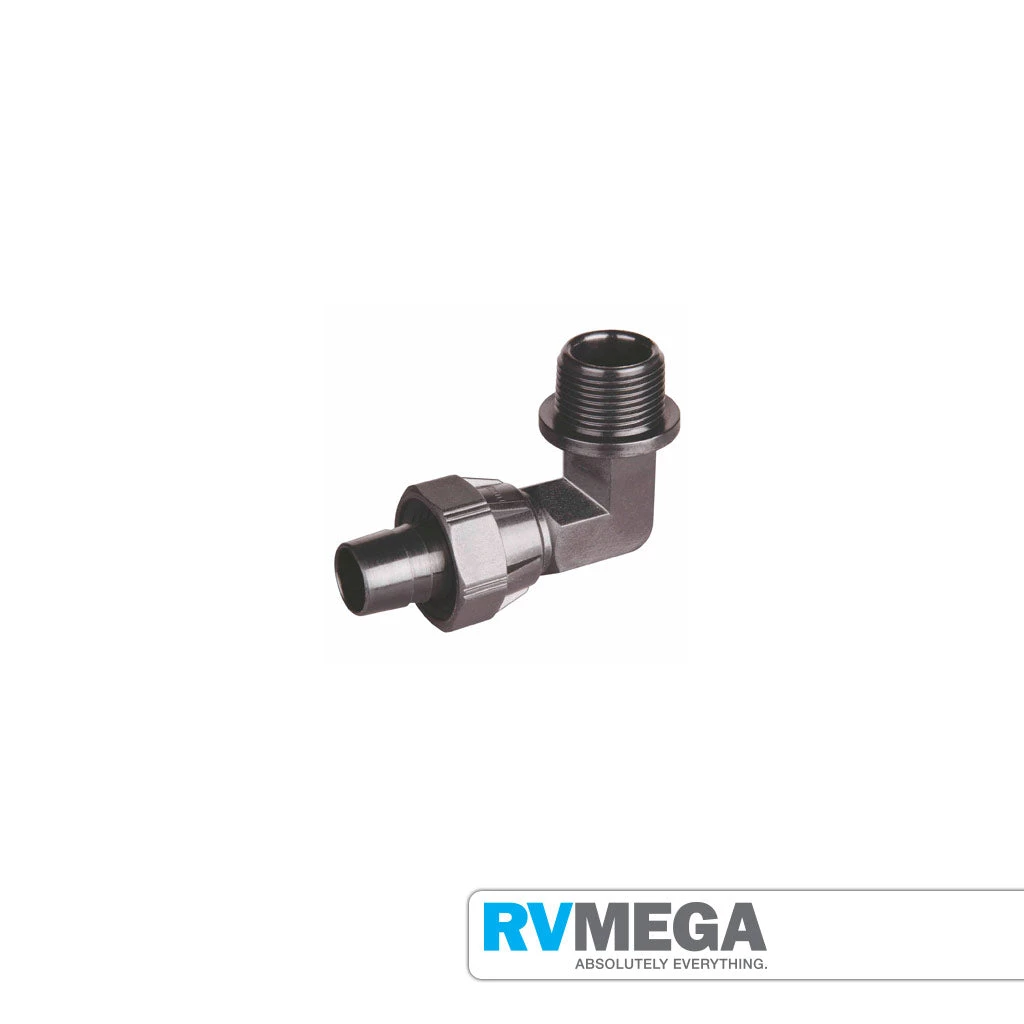

RV MEGA Hansen 20mm Male Short Bend

Easy Fit Poly Male Bend Short – Used for connecting Low Density Polythene Pipe (LDPE) and Enduroflex to Female Threads. Can also be used to connect flexible pipe and hose.

Features

• Suitable for use above or below ground in varying operating pressures and temperatures

• Strong, lightweight and compact

• Simple to use one piece fitting – no components to lose, rust or corrode

• Fast and easy to assemble – push the pipe onto the fitting and wind on the nut

• No O-Ring, no crimping, co solvent cement

• Nut and Barbs provide superior double strength grip – when fitted correctly the fitting will not leak or blow off the pipe

• Manufactured from UV Stabilised High Quality Glass Fibre Reinforced Nylon giving a weather, termite, fungi and bacterial resistance

• Material approved for use with Potable (drinkable) Water

• Fittings demonstrate excellent hydraulic flow characteristics

Hansen code HMBS20

Metric (BSPT x Poly) 20 x 20mm

Imperial (BSPT x Poly) 3/4” x 3/4”

Max pressure @ 20 Degrees Celsius 16 Bar (1600 KPA. 235 PSI)
