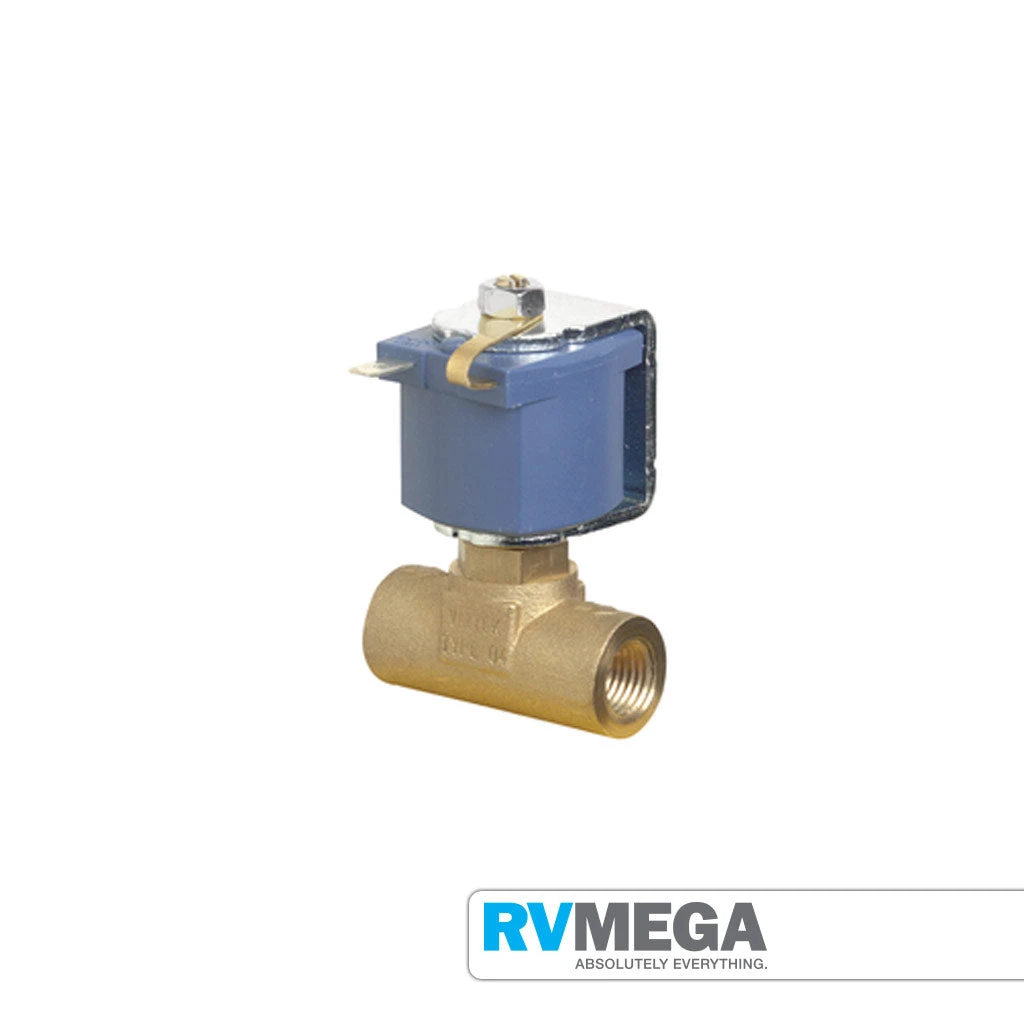

Shut-off Valve
Features
-
On/off shut-off valve without filter
-
Female inlet connection ; male or female outlet connection
-
Mount the valve and connect to fuel supply hose or pipe
-
Material: brass
-
Suitable for LPG, petrol, diesel applications
-
Approval: ECE R67-01 UL standard 429 ECE R10-03
-
Fixing – Coil armature with holes: Ø 5,5 mm – Ø 6,5 mm
-
Coil type Big – 12 V – 11 W: Lucar Plugs connection
- Coil type Big – 12 V – 8 W: Lucar plugs and ground connector
- Coil type Small – 24 V – 11 W: AMP SUPERSEAL 1.5 connection
- Coil type Small – 24 V – 8 W: Connection wires L=140mm
- Coil type Small – 12 V – 8 W + diodo: SICMA 2
Max. working pressure 3 MPa (GPL / LPG) 0,7 MPa ( petrol, diesel)
Working temperature -20°C +120°C
Flow rate with air [nl/h] – varying pressure at ambient temperature 5700 @ 1 bar – 12500 @ 2 bar
