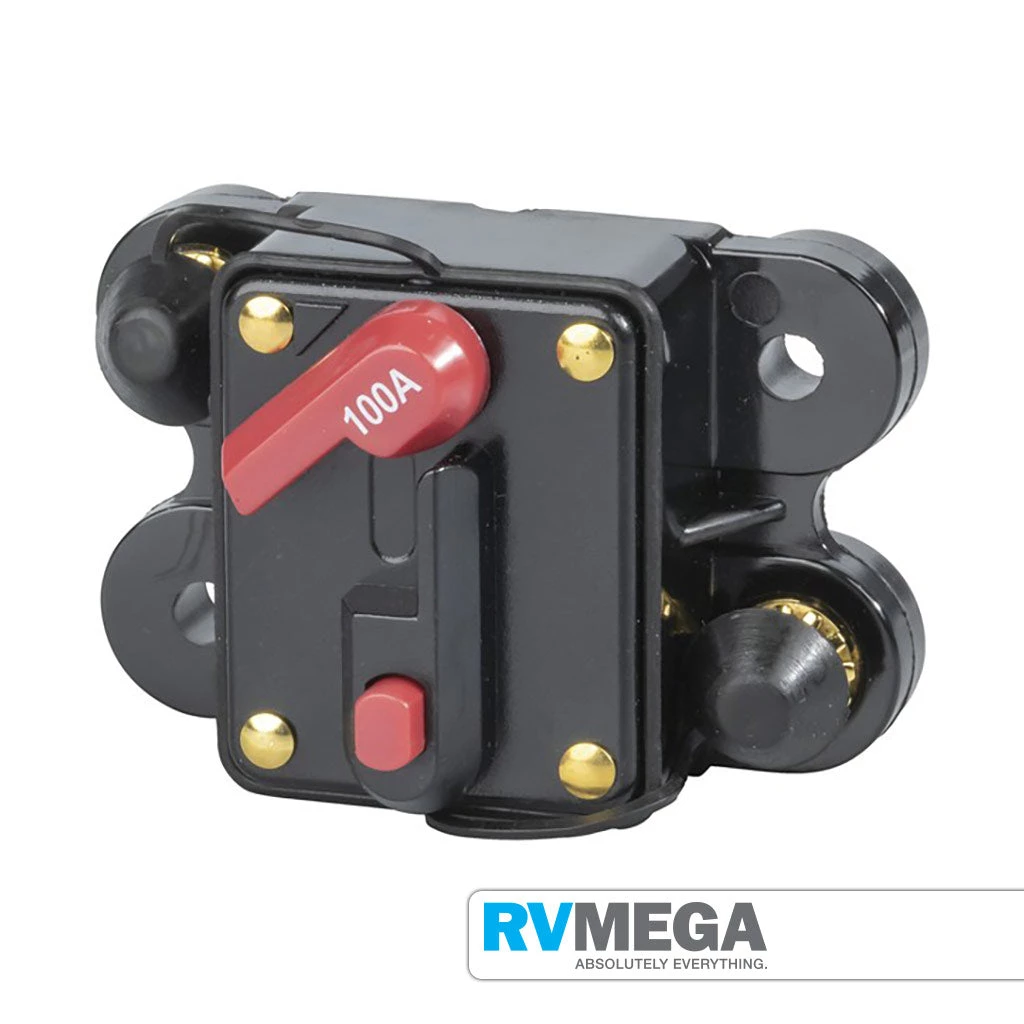

RV MEGA Electrical & Lighting Circuit Breaker 100 Amp

This device will trip within a few milliseconds under short cct conditions and features protective rubber caps, test button and gold plated 5mm dia terminals.

Moulded in black electrical grade bakelite, this rugged and reliable device allows you to simply reset rather than find another expensive fuse. It offers lower voltage drop than a fuse and can be used as an occasional circuit isolation switch. Operating voltage is 12 to 14V DC

Will trip at 110A or immediately under short circuit conditions.Supplied with 5mm dia gold plated terminals with captive shakeproof washer and provision for up to 1/4 mounting bolts. Protective rubber caps for terminals.

Test button on top of unit enables circuit breaker to be used as switch circuit restored with simple lever action.

Specifications:

• Circuit Breaker Type : High current

• Circuit Breaker Current : 100A

• Circuit Breaker DC Voltage : 14.0V

• Circuit Breaker Pole Count : 1 pole
