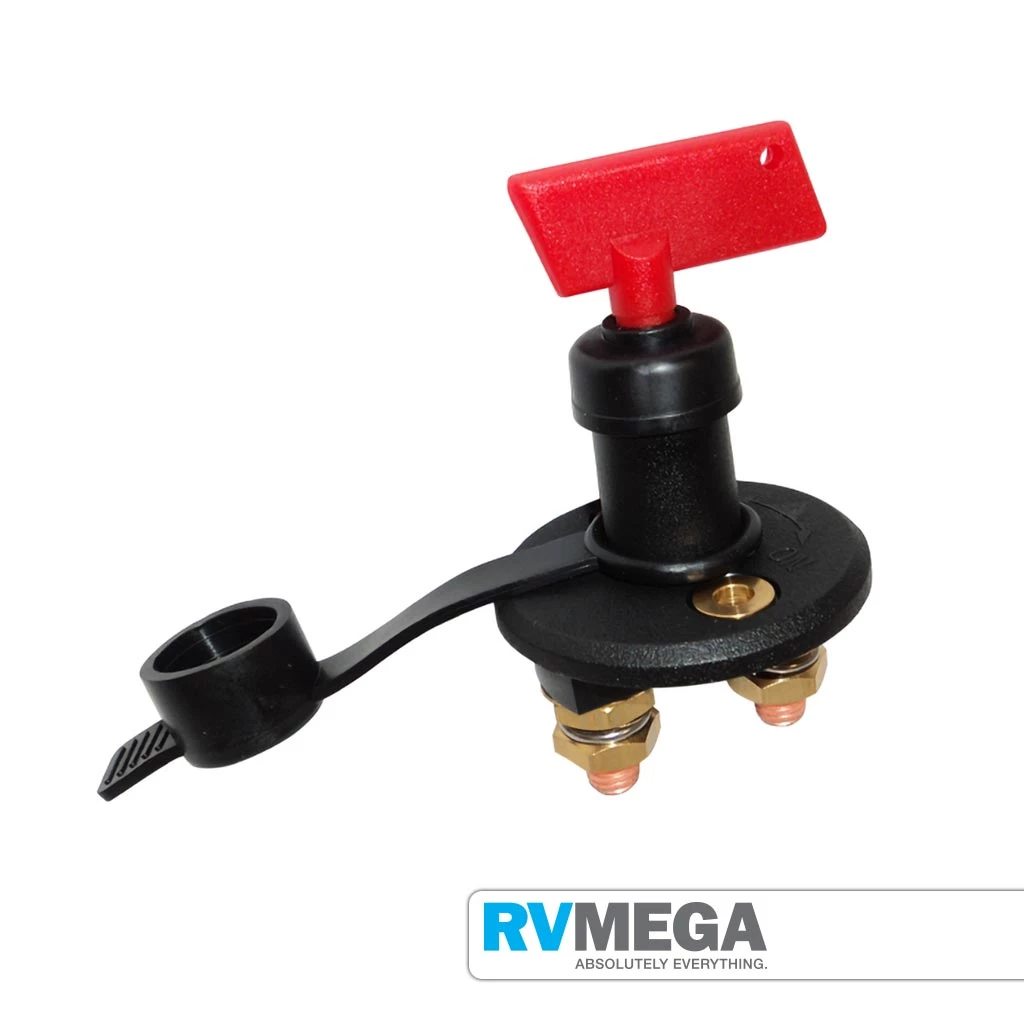

RV MEGA Battery Switch Key Type

Water-resistant Master Isolating Switch with Capped Key excellent for both marine and automotive use.

Can be used as battery switch or isolating heavy duty equipment. For added security and safety the key can be completely removed and a protective rubber collar inserted.

Dimensions

• Diameter (oa): 57mm

• Cut-out hole required: 23mm

• Depth required: 45mm

• M8 Studs

Features

• Designed for panel flush mounting

• Supplied with PVC capped key which stays in place when ON and can be removed in the OFF position

• Prevents battery drain when vehicle is in storage, deters theft

• Isolating Switch for anchor winches, bow thrusters, appliances

12 or 24 volts

100A continuous

Intermittent use (500 amps for 10 seconds)

500 amps for 10 seconds, 100 amps continuous
