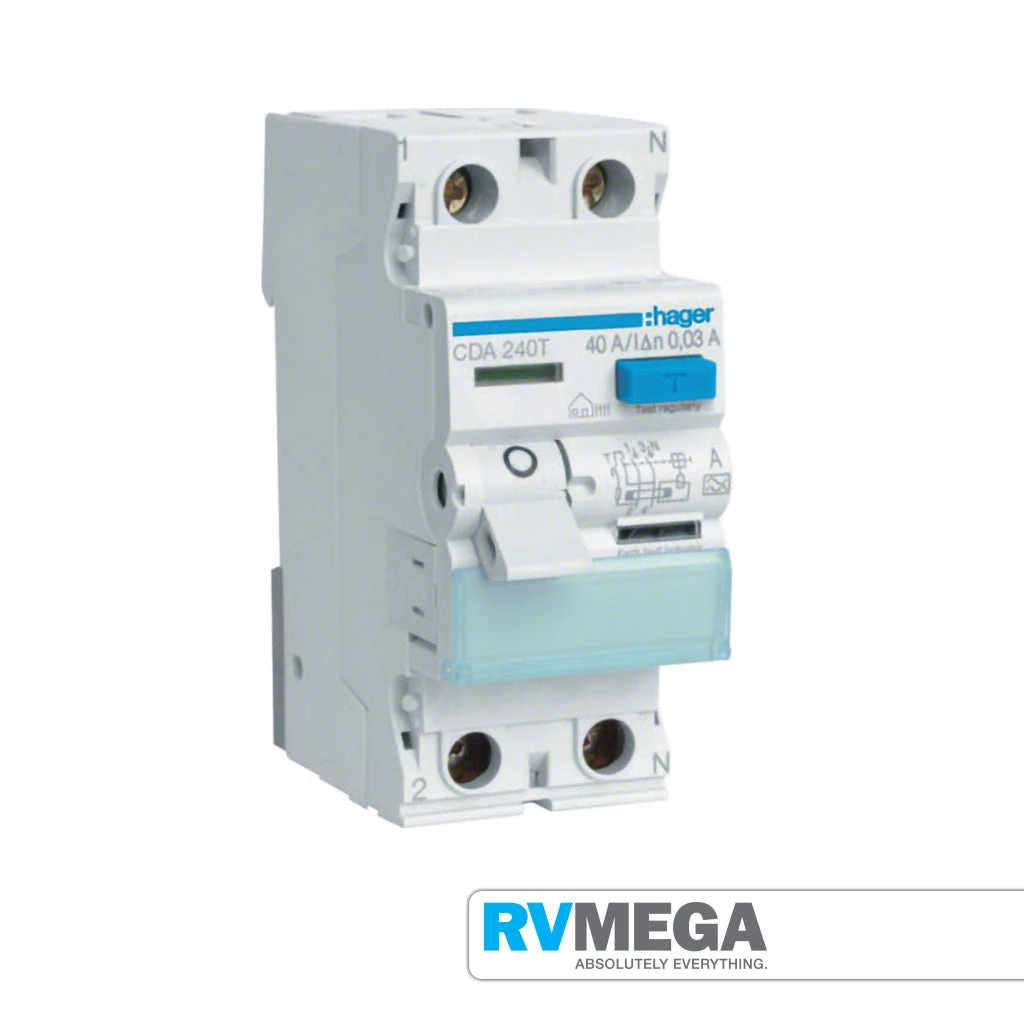

RV MEGA 240v Caravan RCB Circuit Breaker

HAGER RCCB 2P 40A 30MA TYPE A 2MOD – RCCB safety switches, Class A.

Dimensions

• W35 x H83 x D70mm

Features

• Caravan RCB Circuit Breaker – 240v

• Number of modules 2

• Number of poles 2 P

• Class: A

• Mounting method: DIN rail

• Short-circuit breaking capacity: 6 kA

• Connection cross-sect. rigid cable 25mm²

• Connection cross-sect. flexible cable 16mm²

• Tightening torque 2,8Nm

Rated current 40 A

Nominal rated current 30 mA

Frequency 50 Hz

Rated insulation voltage 500 V

Nominal rated voltage 240 V

Rated impulse withstand voltage 4 kV

Operating temperature -25 to 40 °C

Electric endurance in number of cycles 2000

Number of mechanical operations 4000
