Power Train Battery Charger 6 Amp 12V Automatic 7 Stage Electrical & Lighting

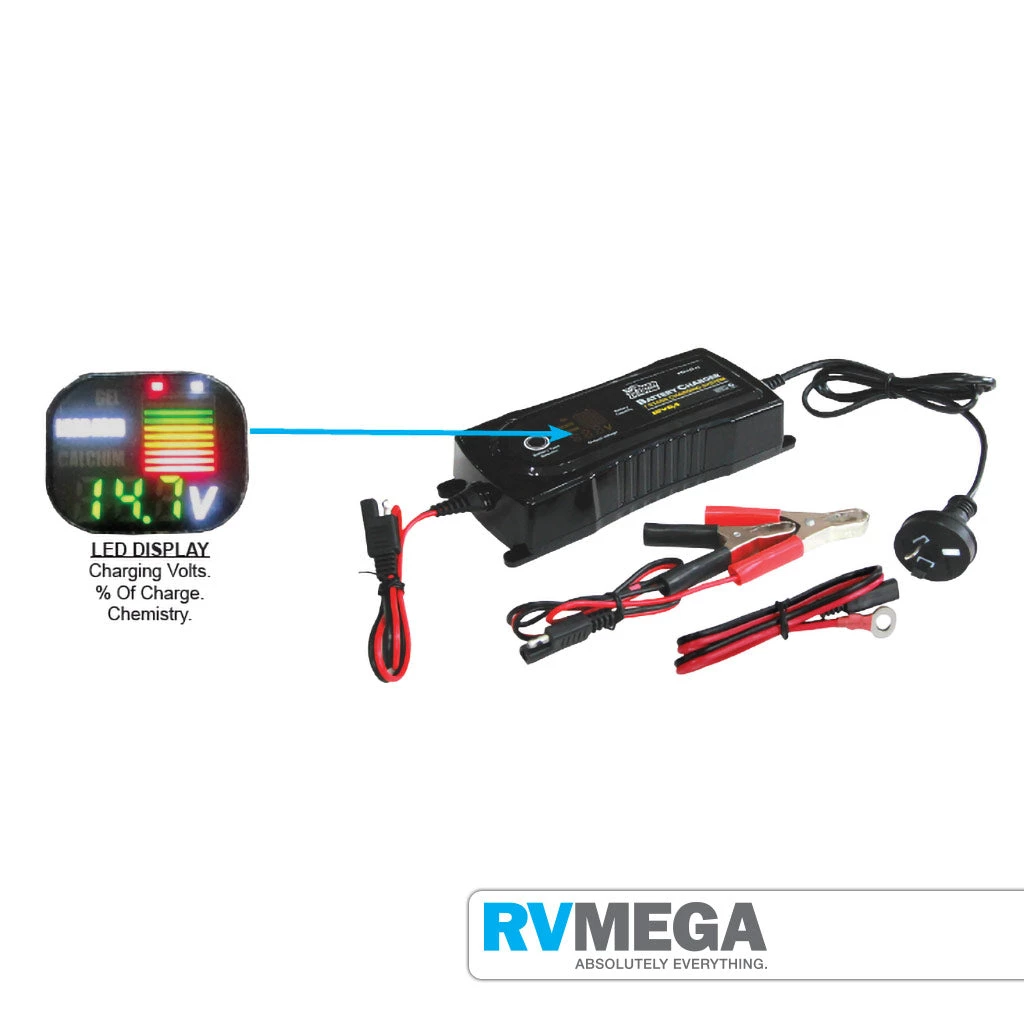

Power Train PTC12V6A7SL smart battery charger – Designed to charge light, medium and heavy duty batteries, it is perfect for charging and maintaining 12v – Car, 4wd, RV, Marine and light commercial batteries.

The PTC12V6A7SL charger is controlled by a sophisticated on board programming, enabling quick and safe charging as it implements a 7 stage charging algorithm. The on board micro-chip controls the unique pulse algorithm for the charging cycle, which helps reduce the oxidation on the battery plates and evens the consistency of the electrolyte. It minimises temperature whilst charging, recovers the battery capacity and extends battery life.

This Automatic charger can remain connected to the battery without risk of overcharging, as the internal electronics will stop the charging when the battery is fully charged. Once the battery is fully charged, the charger monitors the battery voltage and continues to top up & to maintain the battery, keeping it fully charged and ready for use.

A sophisticated charger system for deep cycle batteries, making them ideal for Motorhomes, Caravan, Horsetrucks, etc…

Features

• Heavy duty design

• IP65 Water resistance rated

• CE, EMC, SAA & C-Tick Approved

• Selectable for GEL, Lead Acid / AGM and Calcium charging modes

• Charging state LED indicators

• Charges from zero volts

• Fully automatic 7 stage charging system

• Desulphation mode with pulses and soft start for severely discharged batteries

• Charges flat batteries, and can recover the capacity of a discharged battery

• Maintenance stage pulse charging increases battery life and gives increased performance

• The charger can be connected and left running for months, without fear of overcharging or damaging the battery

• Protection against: reverse polarity, short circuit, overload, and high temperatures

• Maintenance stage pulse charging increases battery life and gives increased performance

• Compact design with mounting holes for permanent fitting if required

• No fan for silent operation

• Packaged with standard charger clips, along with an interchangeable ring terminal charging.

Charge stages – 7 Stages

• Desulphation – High Frequency Pulse

• Soft Start – Slowly start the charging process

• Bulk charge – Maximum current until preset voltage reached

• Absorption – Constant voltage with automatic amperage control

• Analysis – Analyse the battery condition

• Boost – Higher voltage charge at limited current

• Maintain/Float – Pulse to maintain maximum charge

Output Current 6A

Output Voltage (Nom) 12V

Input Voltage 175-255VAC/50-60Hz

Battery Type Selectable Gel/Calcium/Lead Acid-AGM

Output Voltage (Bulk) 14.3V Gel / 31.2V Cal / 14.8V LA & AGM

Output Voltage (Absorption) 14.3V Gel / 15.6V Cal / 14.8V LA & AGM

Output Voltage (Float) 13.3V Gel /13.7V Cal / 13.7V LA & AGM

Battery Range (Charge) up to 700CCA or 100A/h

Battery Range (Maintain) up to 1000CCA or 200A/h
