NEXTECH Digital Wireless 5in Reversing Camera Reversing Cameras

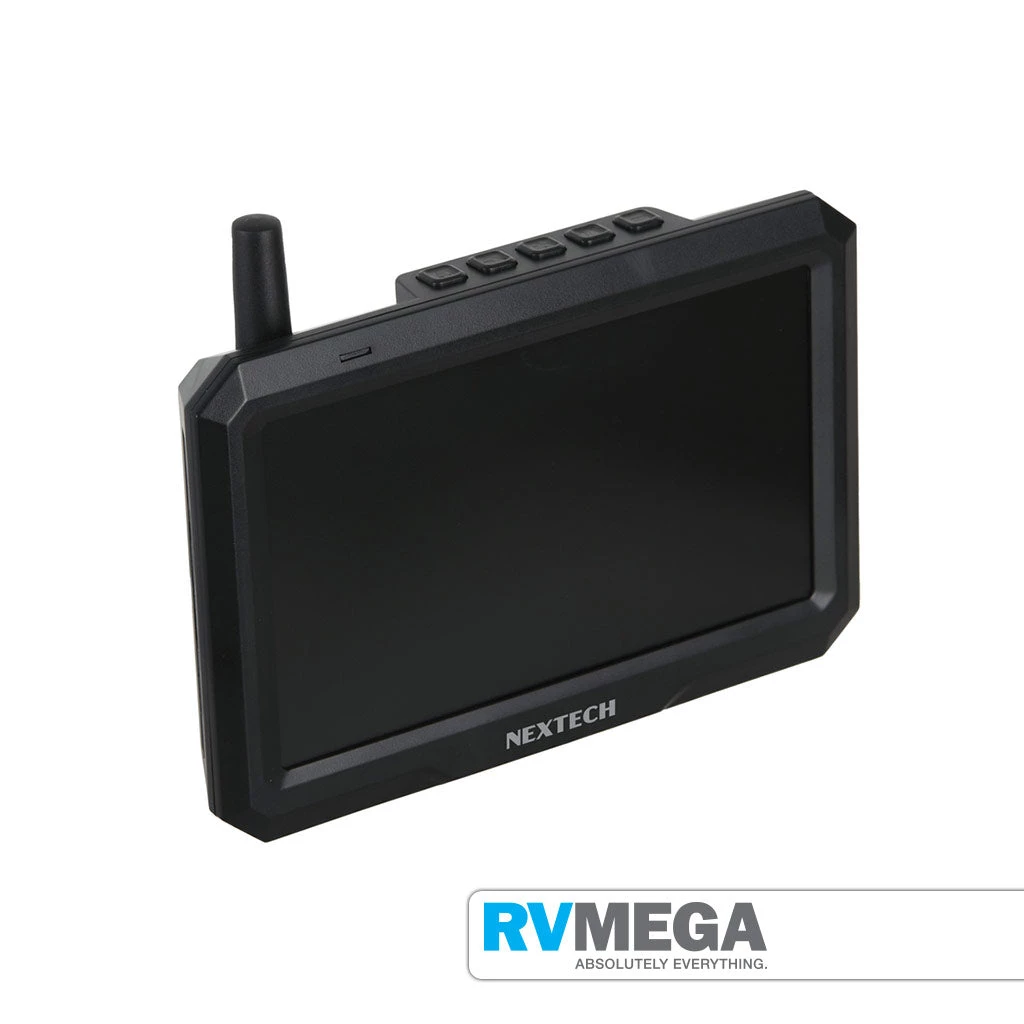

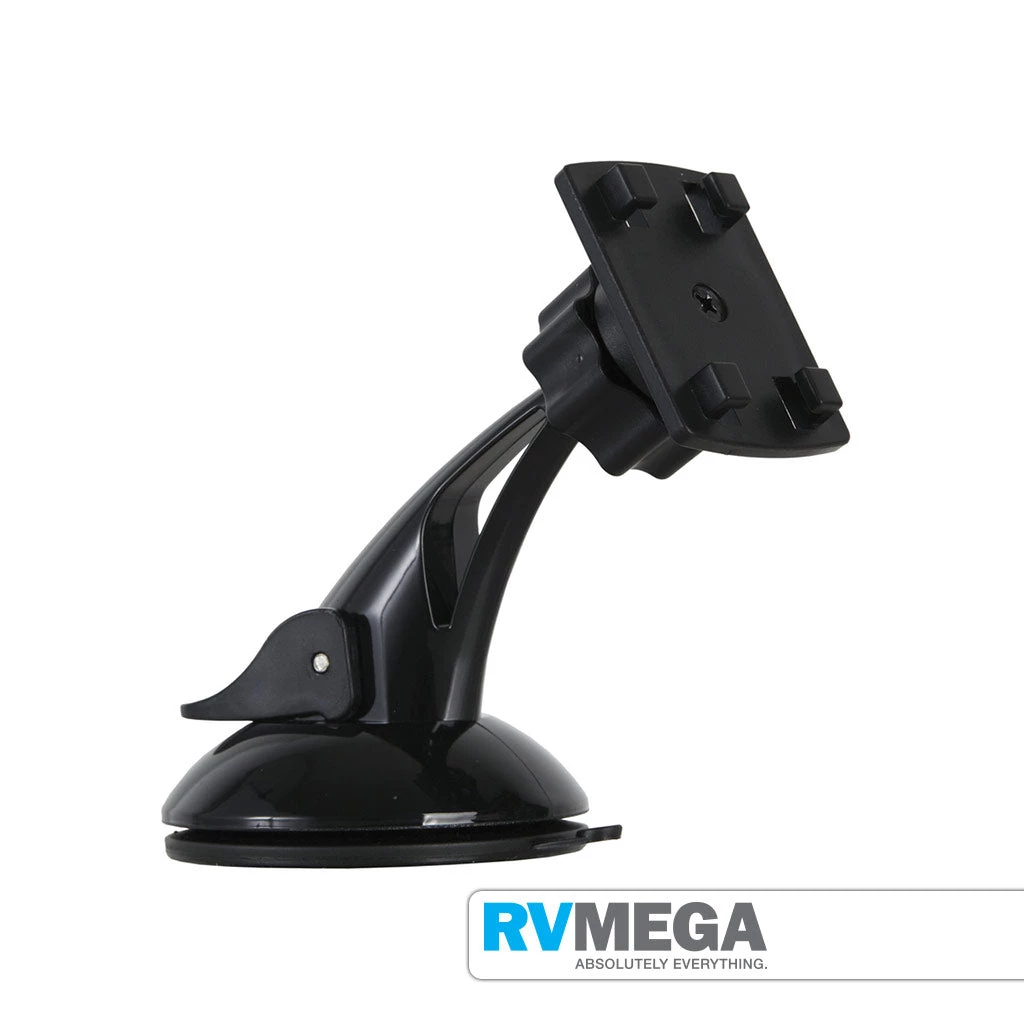

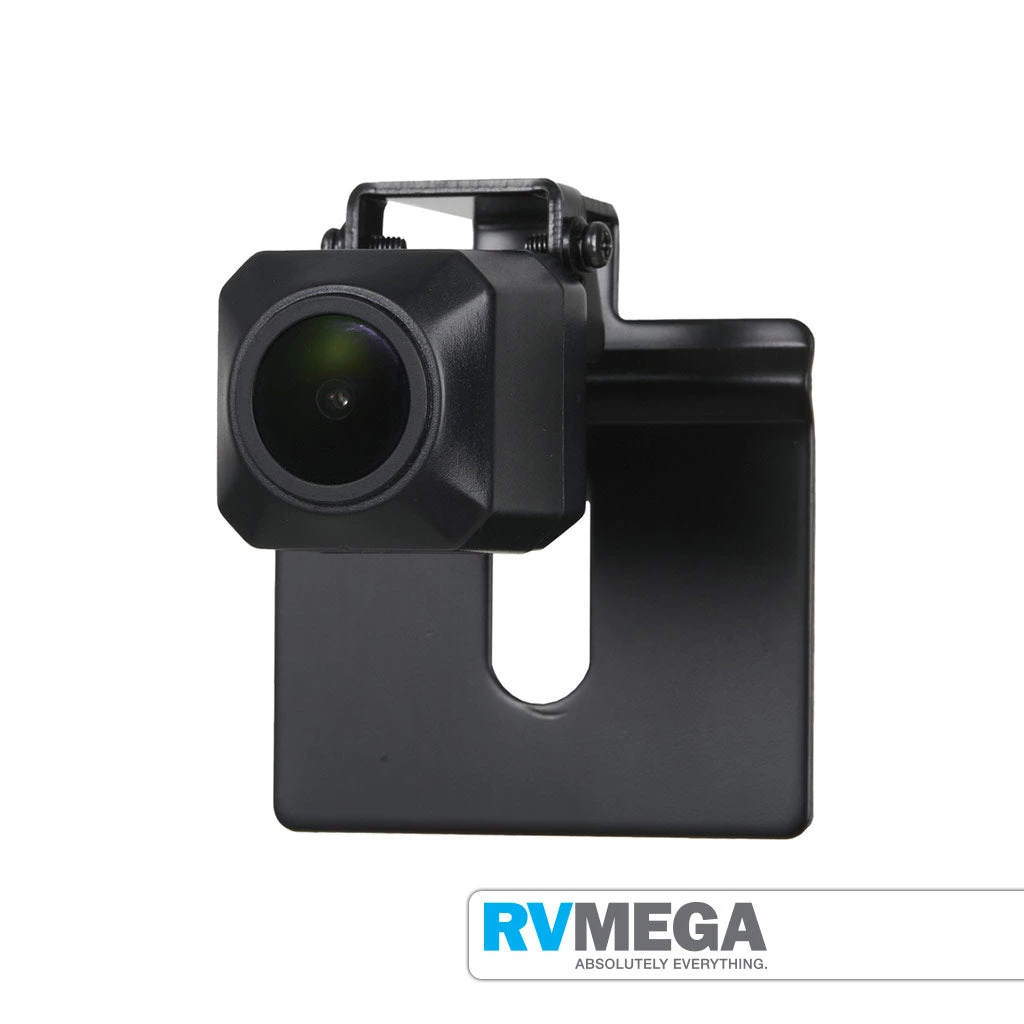

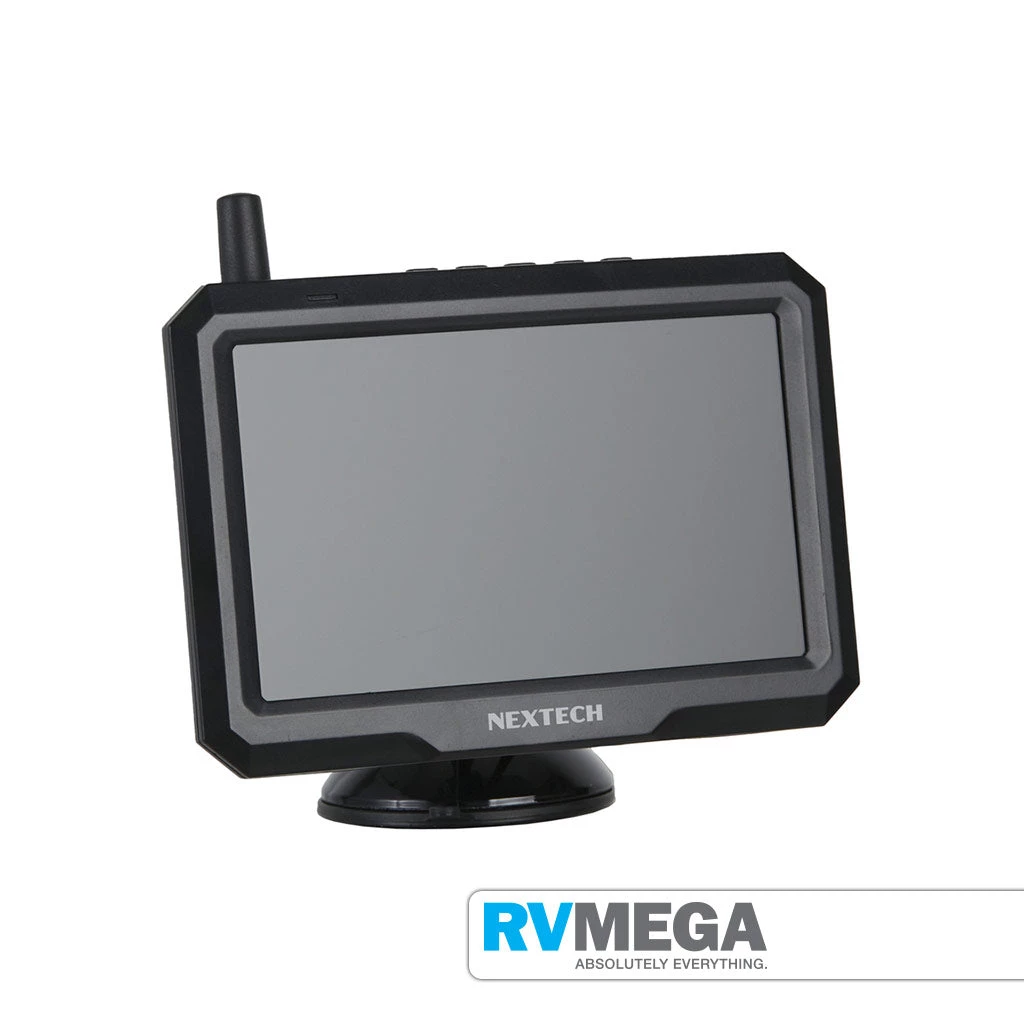

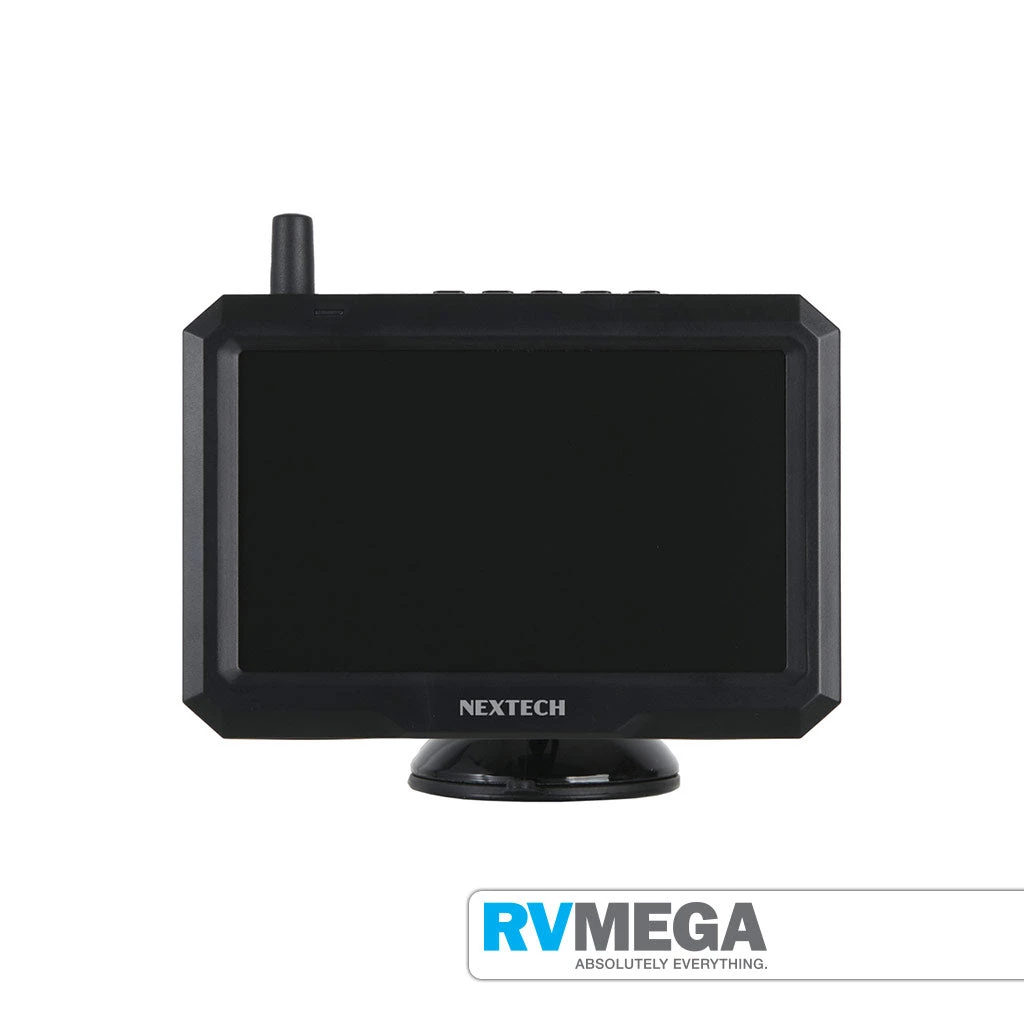

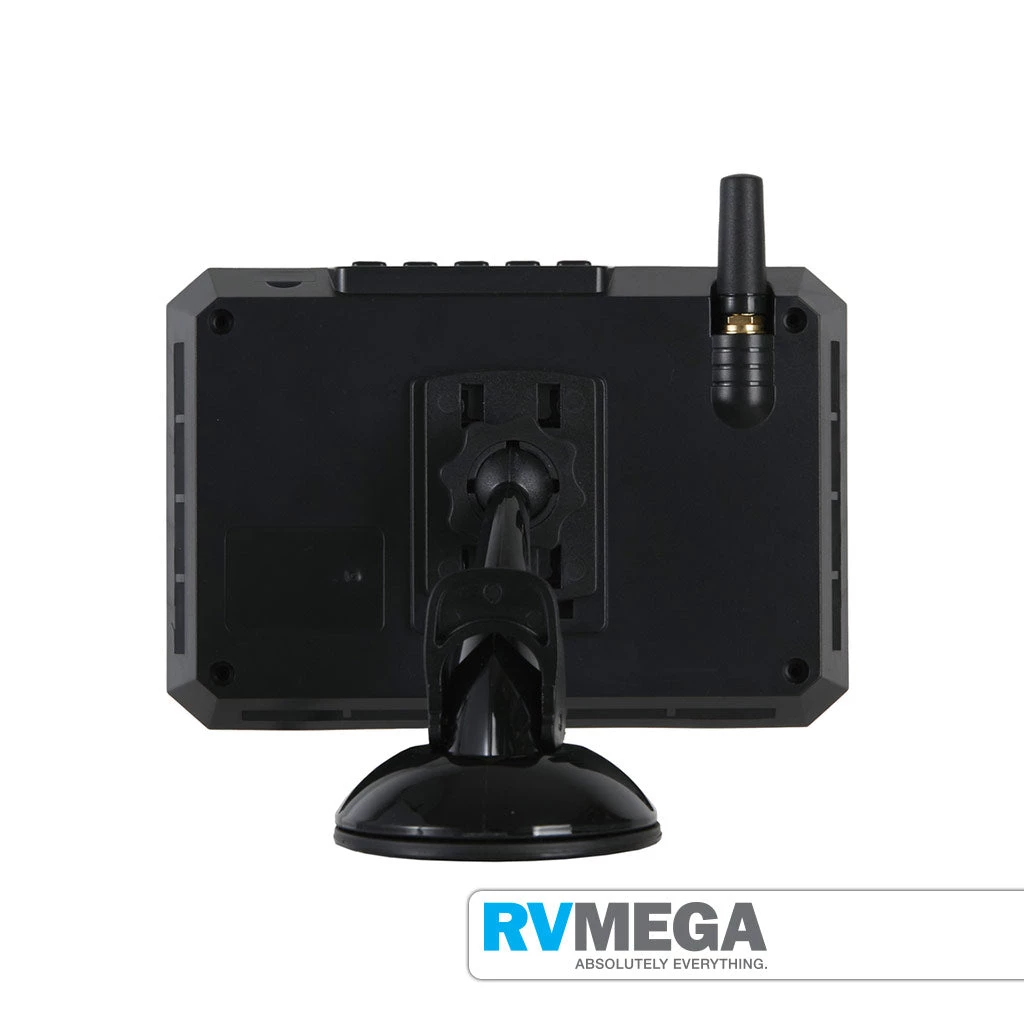

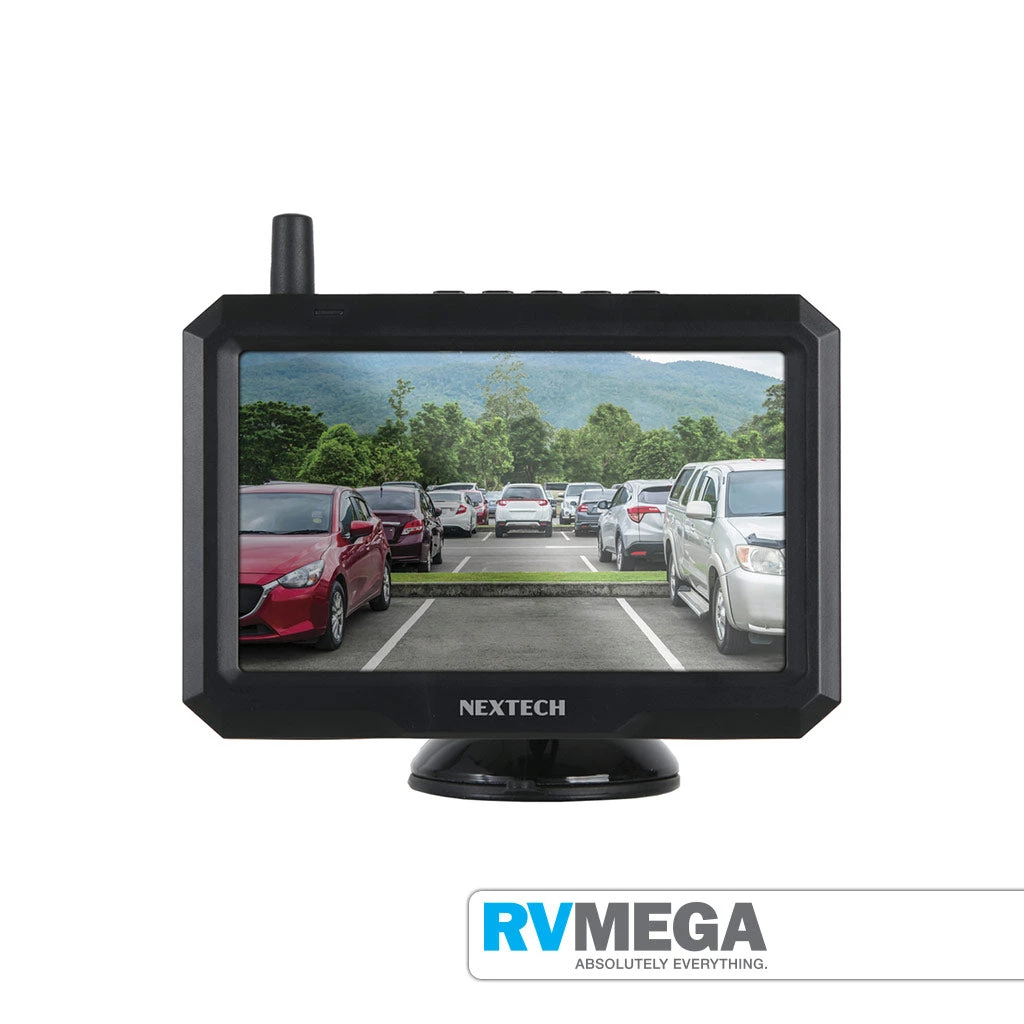

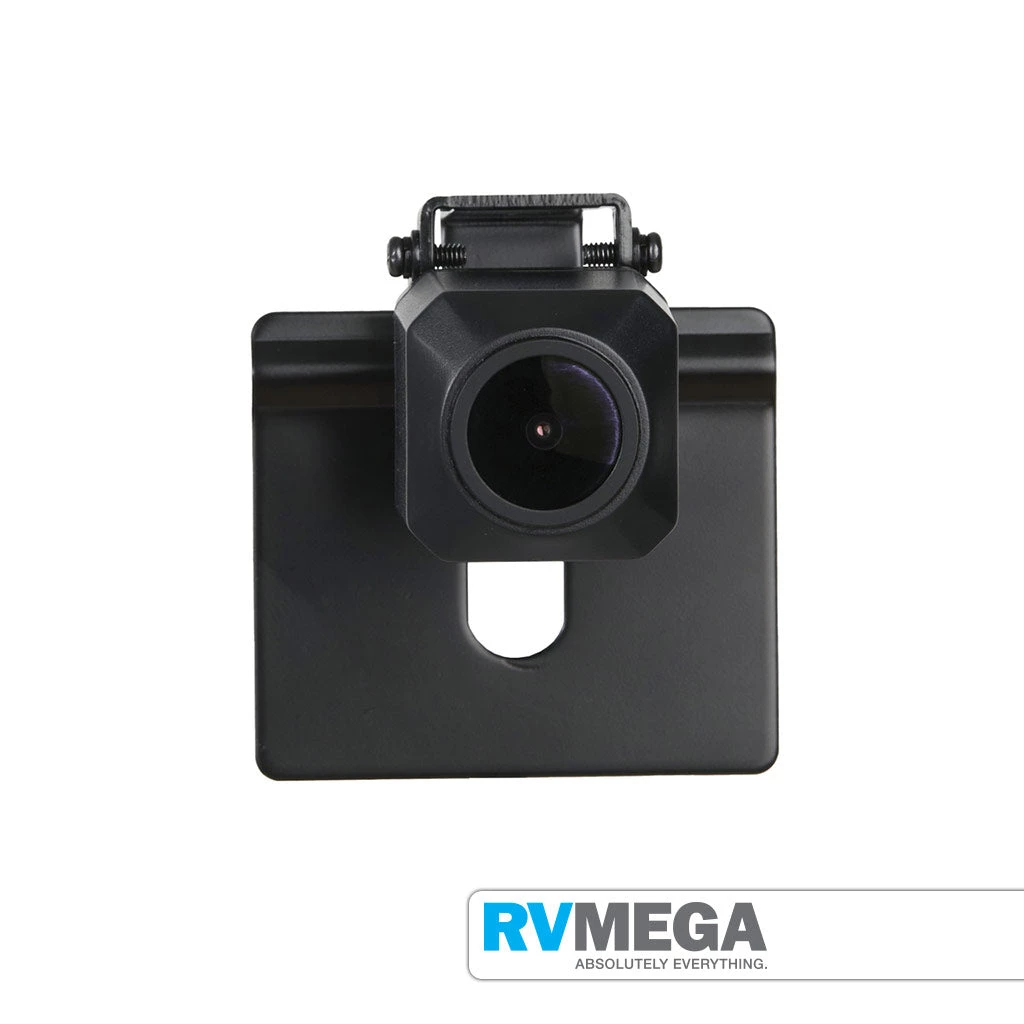

An easy to install wireless camera and monitor kit that provides a crystal clear picture as you reverse your vehicle. The 5” colour screen simply plugs into a cigarette lighter socket and mounts to your car’s dash or windscreen using the suction cup bracket. The waterproof HD camera connects to your reversing lights for operation and mounts above your number plate using the short or long mounting brackets provided. The wireless digital signal from the camera is encrypted and ensures a more stable interference-free picture. Other features include infrared illumination to improve visibility in the dark, reversing guidelines, and 12-24VDC operation, making it also suitable for trucks.

Specifications:

Display Screen

• Horizontal Screen Resolution: 800 Pixel

• Screen Width: 132.5mm

• Screen Backlight: LED Backlit

• Vertical Screen Resolution: 480 Pixel

• Screen Type: Flat Panel Screen (LCD)

• Screen Height: 89.5mm

Wireless transmission

• Transmission frequency: 2.4 GHz

Ingress Protection Rating

• IP Rating: IP65

• Dust/Particle Ingress Protection: 6 – Dust tight, no ingress of dust

• IP rating for Camera Liquid/Moisture Ingress Protection: 5 – Water jets

Reversing Cameras & Monitors

• Camera View Angle: 110°

• Cameras Included: 1 Pc

• Camera Resolution (V): 550

Vehicle or Vessel Power

• Vehicle Connection: Bare Leads

• Required Voltage: 9V-30V

• Item Connection: Barrel Plug

Product Dimensions

• Height: 25mm

• Width: 27mm

• Camera Depth: 25mm
