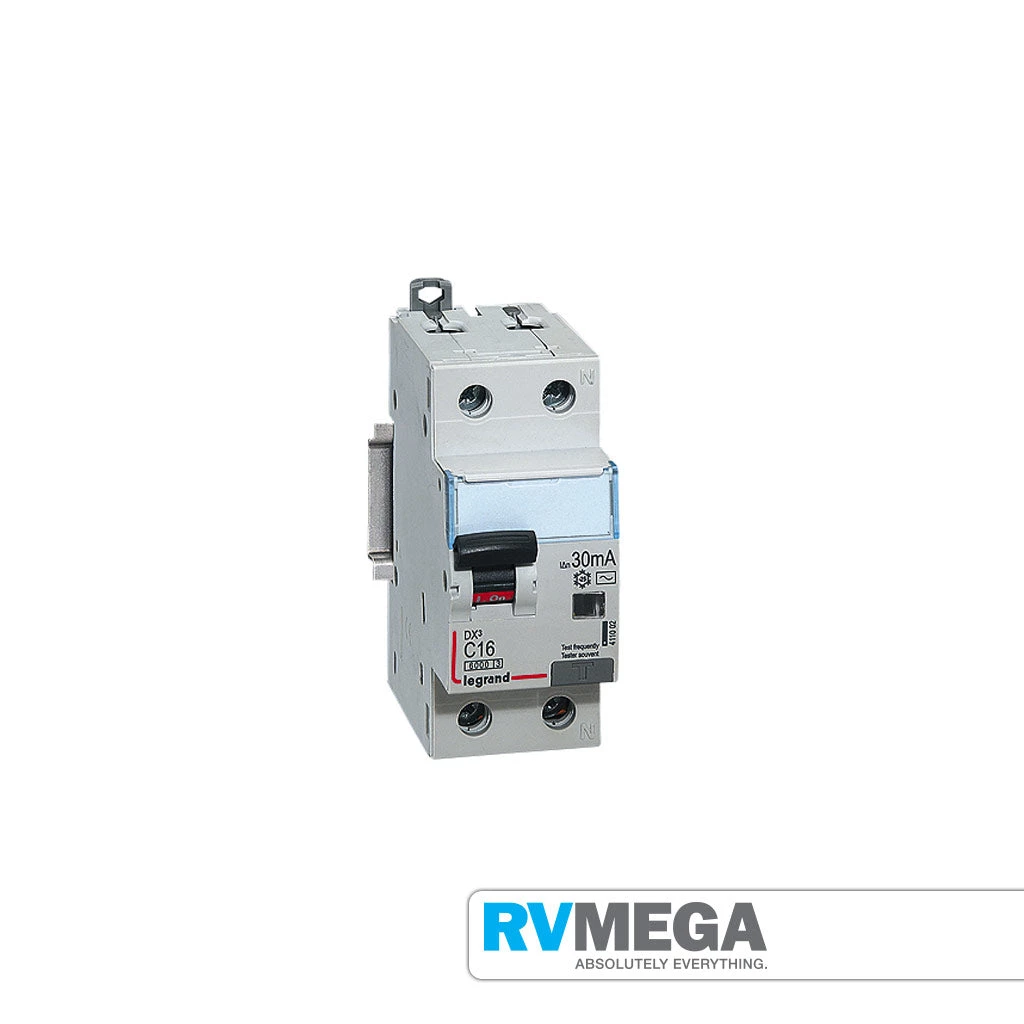

Legrand RCBO 16A Caravan Circuit Breaker

RCBOs DX³ 6000 – 10 kA – residual current circuit breakers from 3 A to 63 A – AC, A and F types.

Residual Current Circuit Breaker with Overload (RCBO) with positive contact indication for control, protection against short-circuits and overloads, and isolation of electrical circuits, protecting people from direct and indirect contact and protecting installations from insulation faults.

Features

• Conform to IEC 61009-1, IEC 62423 (F type)

• Compatible with prong-type and fork type supply busbars

• Voltage independent tripping

• Breaking capacity: 6000 – IEC 61009-1 – 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole

• AC type : detect AC component faults

• A type : detect AC and DC component faults

• F type (High immunity) : detect AC and pulsating DC residual currents

• Enhanced immunity to unwanted tripping in disturbed environments

• Detection of high frequency fault currents

• Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls

• Number of modules : 2

Single pole + neutral – 230 V~

Neutral on right-hand side

A Type 30 mA

C curve

Nominal rating In 16 A
