HELLA Relay N/Open 12v, 180 Amp Peak Electrical & Lighting
Original price was: $29.76.$19.05Current price is: $19.05.
- Guaranteed High Quality
- Fast reliable delivery options
- 7-Day Returns, 100% Quality
- Fast, friendly, always here to help.
12V 4 Pin Normally Open High Capacity Relay – 180A
Features
-
Normally open relay
-
With bracket
-
Terminals 30 and 87 are 6mm studs
Voltage 12V DC
Pins 4 Pin
Current draw 350mA
Amperage 180A peak current (100A continuous)
Maximum load 180A peak current (100A continuous)

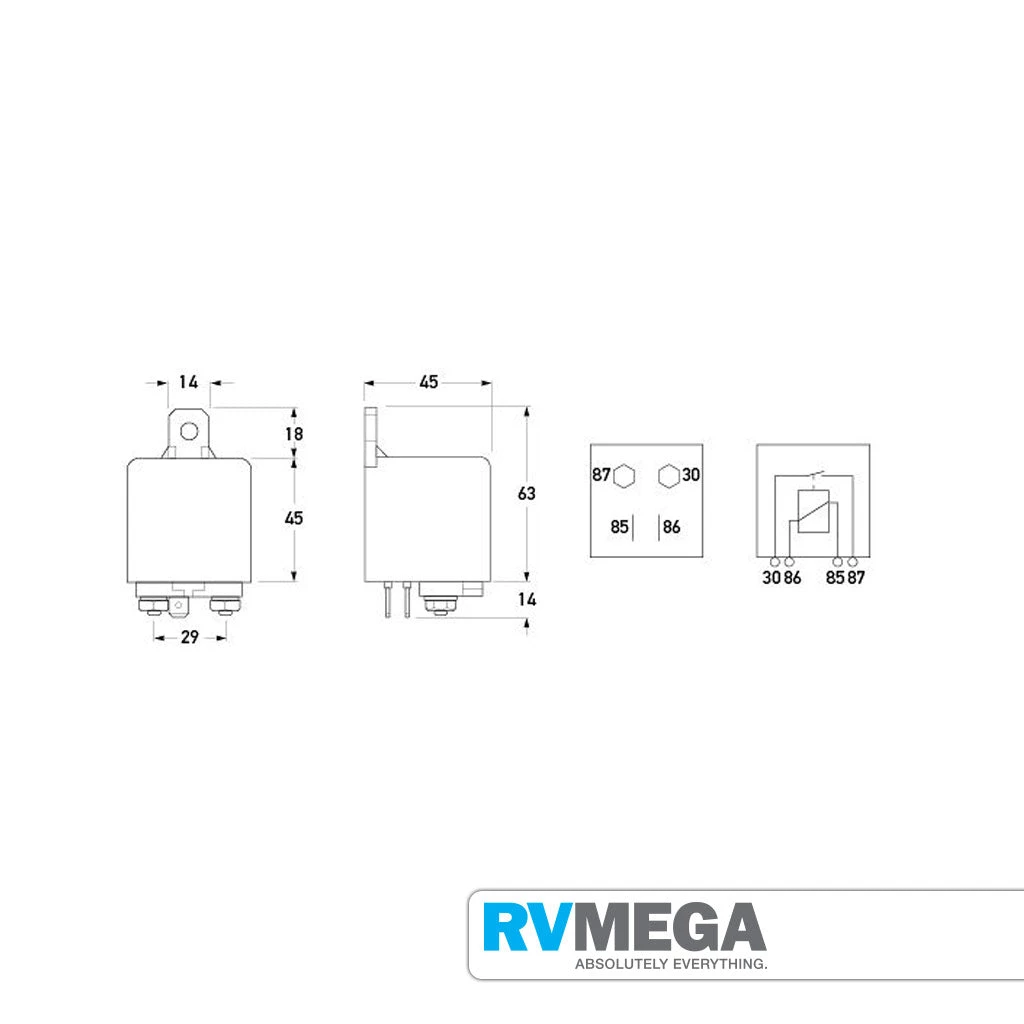

Pin designations
-
Terminal Number 85/2 Connect to Earth (end of winding to ground or negative)
-
Terminal Number 86/1 Connect to Positive
-
Terminal Number 87/5 Connect to Output (to consumer e.g. driving lamp)
-
Terminal Number 30/3 Connect to Positive supply (Input from + battery terminal, direct)
