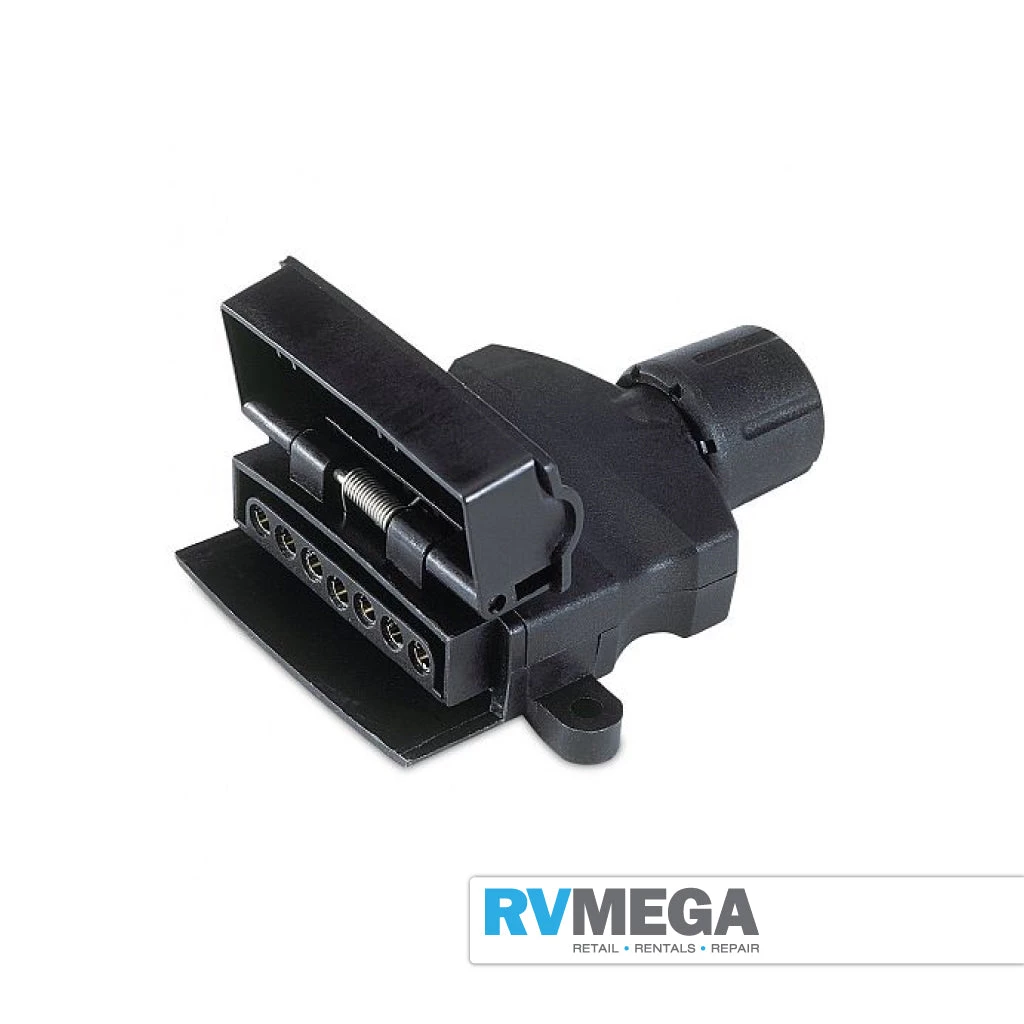

HELLA 7 Pole Flat Female Socket

Features

• Impact resistant, UV stabilised plastic spring loaded lid

• Nickel plated contacts for excellent electrical performance

Maximum load 12V 20A (total) / 24V 10A (total)

7 Pole Connector Wiring Specifications

• Terminal Number 1: Connect to Left-hand flasher lamps – Yellow

• Terminal Number 2: Connect to Reversing lamps – Black

• Terminal Number 3: Connect to Earth return – White

• Terminal Number 4: Connect to Right-hand flasher lamps – Green

• Terminal Number 5: Connect to Service brakes (or Auxiliary) – Blue

• Terminal Number 6: Connect to Stop lamps – Red

• Terminal Number 7: Connect to Rear position, number plate and clearance lamps – Brown

• Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
