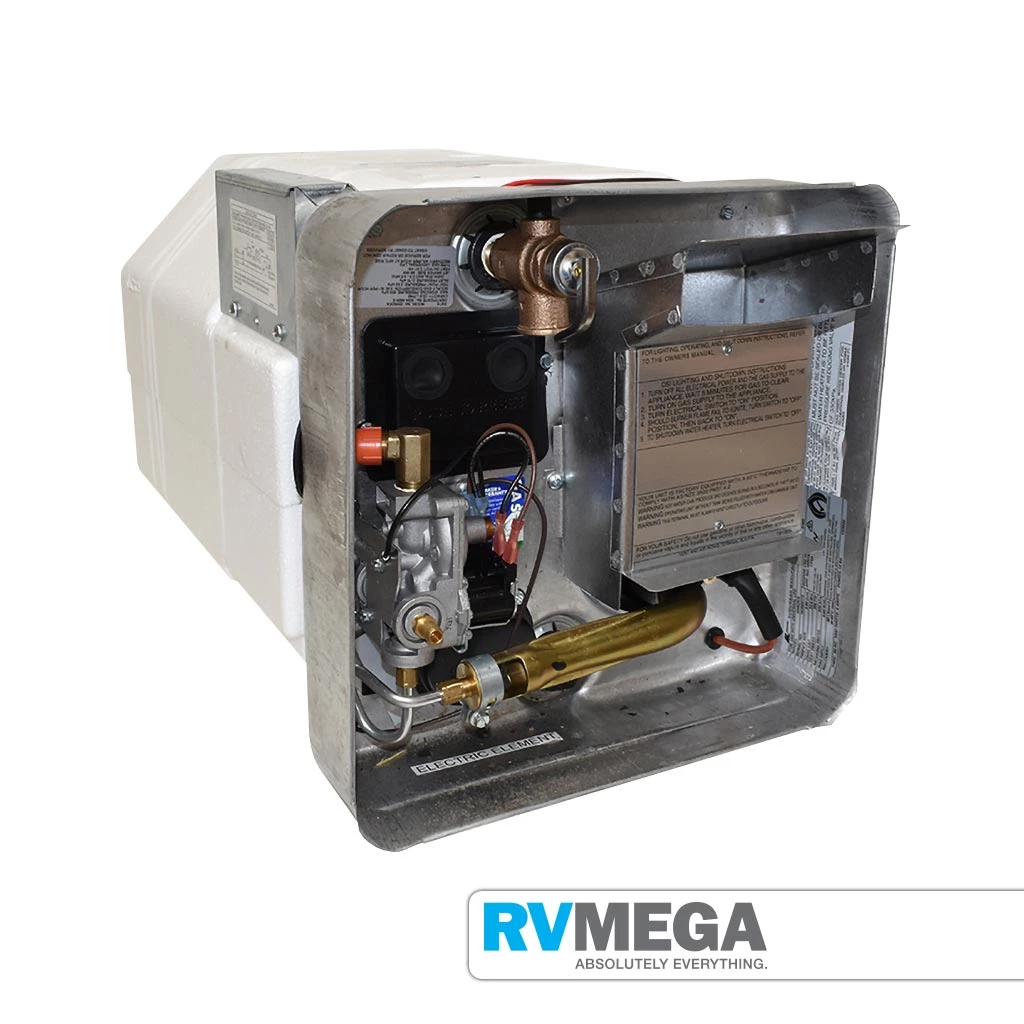

Heating – Water & Air Suburban WaterMark Hot Water Heater Gas & 240V Electric (SW6DEA)

The new line of WaterMark certified Suburban water heaters are the same great product you know and trust. Their high recovery gas and gas electric models come in sizes and with the features to match the requirements of almost any RV!

The Suburban HWS range all have porcelain lined, high tensile steel tanks, which are pressure tested twice assuring tank integrity and life.

There are a number of gas and gas-electric models available to suit most hot water requirements while travelling. The automatic models feature direct spark ignition with a remote switch for on/off control from inside the RV. Gas consumption is also kept to a minimum, making Suburban an economical choice.

Dimensions

• W320 x H320 x D500mm

Features

• 12V control panel with auto ignition

• Operates on universal gas & 240V – User is able to control which operation is sourced by means of an internal switch for gas and an external switch for electricity

• Long life: porcelain lined, steel water heater tank with an anode rod to “absorb” the electrolytical action – just like your water heater at home

• Fast recovery: 38 l per hour

• Convenient: easy installation, operation and maintenance

• The limit switch and reset button are conveniently located in a housing behind the removable outer door. The electric heat element and combination drain plug/anode rod are also located there.

• Meets new NZ gas regulations and *NZ/Australian WaterMark certification scheme

• Capacity: 22.6l

• Includes service door

Specifications

• Max working pressure 850Kpa

• Hourly gas consumption 9.60mj/hour

• Test point pressure 2.63Kpa

• Jet orifice size 0.89mm

• Type of heating medium Universal Gas/ 240Volt

• Recovery 40l/hr 450C rise

Electrical

• For auto gas ingnitor 12V DC

• For models with 240V heating element 240Volt – 50HZ AC

• Element rating 1440 Watts – 6 Amp

Declaration of conformity available

A qualified Gas Fitter is required to install this product
