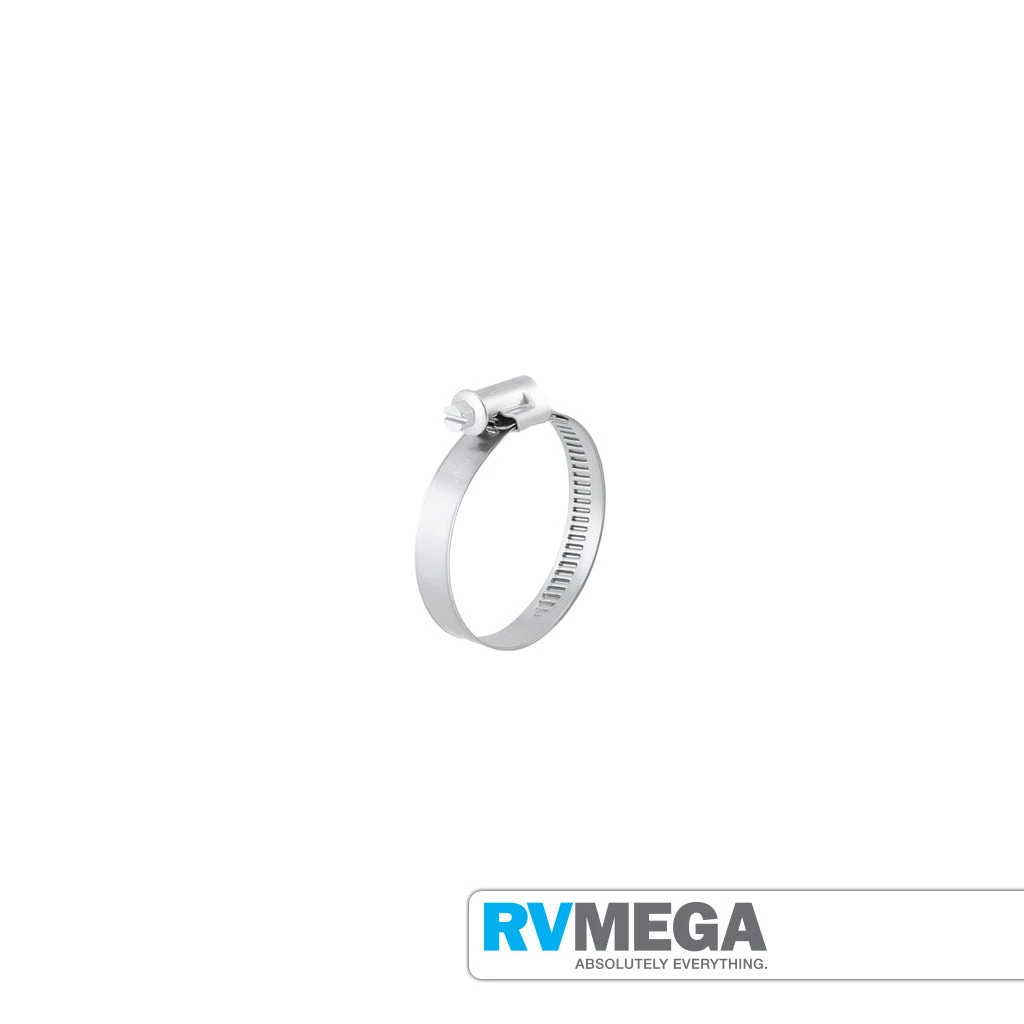

Hansen 70-90mm Hose Clamp Stainless Steel

NormaClamp Torro Stainless Steel Worm Drive Hose Clamps W4

NORMACLAMP® TORRO® multi-range hose clamps are ideally suited to applications with high mechanical loads. Thanks to the continuous developments these products have undergone, they remain the benchmark within modern clamp construction. The key feature of a NORMACLAMP® TORRO® product is its asymmetrical construction – an instant sign that it is a genuine TORRO®.

Asymmetric housing provides high clamping force and superior torque strength. Even distribution of clamping pressure. Clamp aligns perfectly on the hose and ensures the optimal sealing of the connection.

Dimensions

• Band width: 12.0mm

• Clamping range: 70-90mm

Features

• Improved asymmetric housing – Even distribution of forces and safe assembly

• Screw support – Ease of assembly due to the safe guidance of the emerging band end

• Material and clamping range stamped on the band – Prevention of errors

• Asymmetric extension – Prevents the housing from tilting over when the clamp is tightened

• Short housing saddle – Even contact pressure improved efficiency

• Smooth or stamped inside of band – optimal hose protection

• W4 material: Band, Screw & Housing: Stainless Steel throughout (1.4301 / AISI 304)

• No chromium(VI) used for coating purposes

• Clamping ranges in acc. with DIN 3017: 8-16 mm to 140-160 mm

• Applications: joining cooling water lines, depressurized and pressurized fuel lines and ventilation systems, oil lines, joining lines in sanitary applications and other applications
