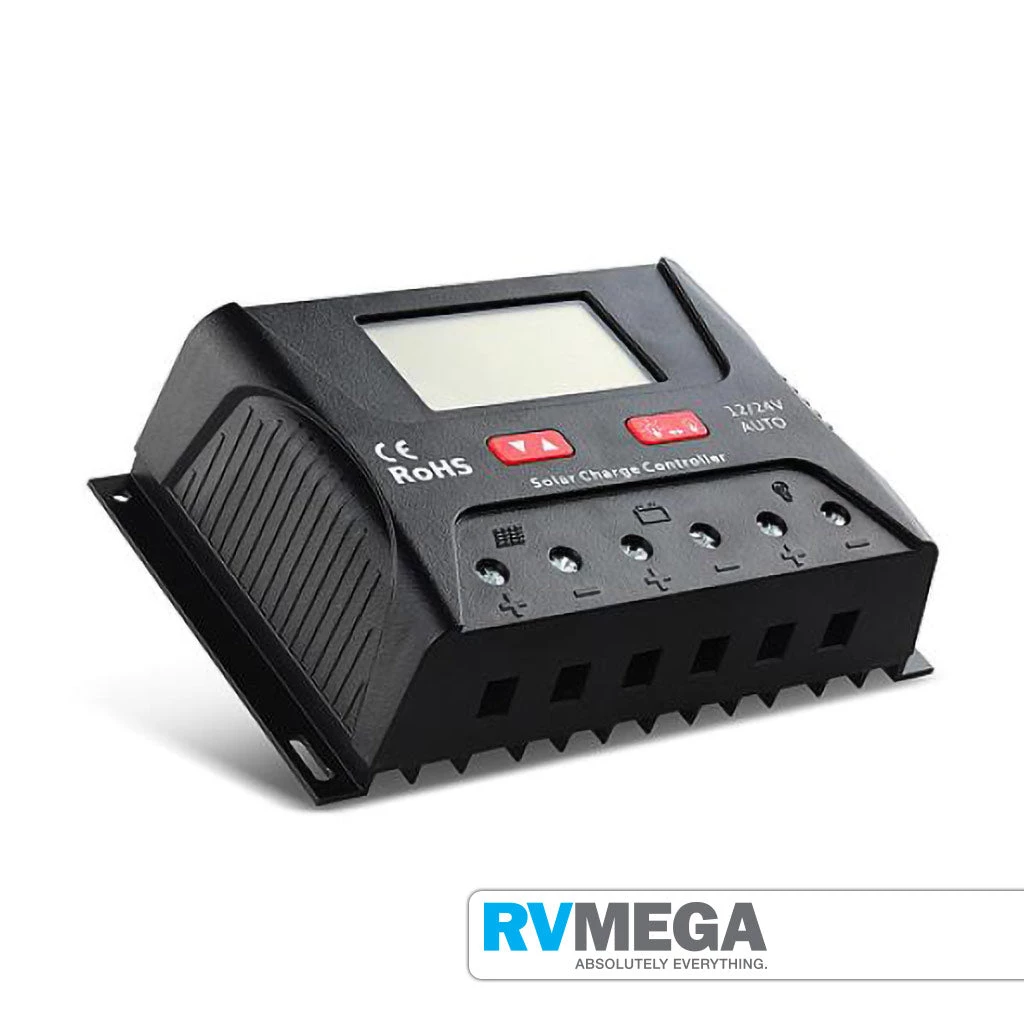

Essential Items Solar Charge Controller SRNE 30 Amp, USB & Voltage Display

SRNE series Lithium compatible PWM charge controllers are the new standard in advanced PWM charge control. Three stage charging mode with various auto temperature and auto load control functions, for fast and effective charge control.

Large LCD display informs user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user. These have automatic battery voltage detection, and adjustable voltage setting for Lithium.

Dimensions

• W164 x H104 x D47mm

Features

• Display: large LCD

• USB charge port: yes – right hand side

• IP rating: IP30

• Working temperature: -25°C ~ +55°C

• Weight: 390g

Operating voltage 12V or 24V – Automatic Detection

Max input voltage of PV panel < 55V

Stand by self consumption <13mA

Charge current 30A

Load current 30A

Over voltage protection 16V (12v) / 32V (24v)

Over discharge recovery 12.5V – configurable

Over discharge voltage 11.0V – configurable
