Essential Items Maxxfan Deluxe Vent – Rain Dome, Thermostat, Power Lift & Remote

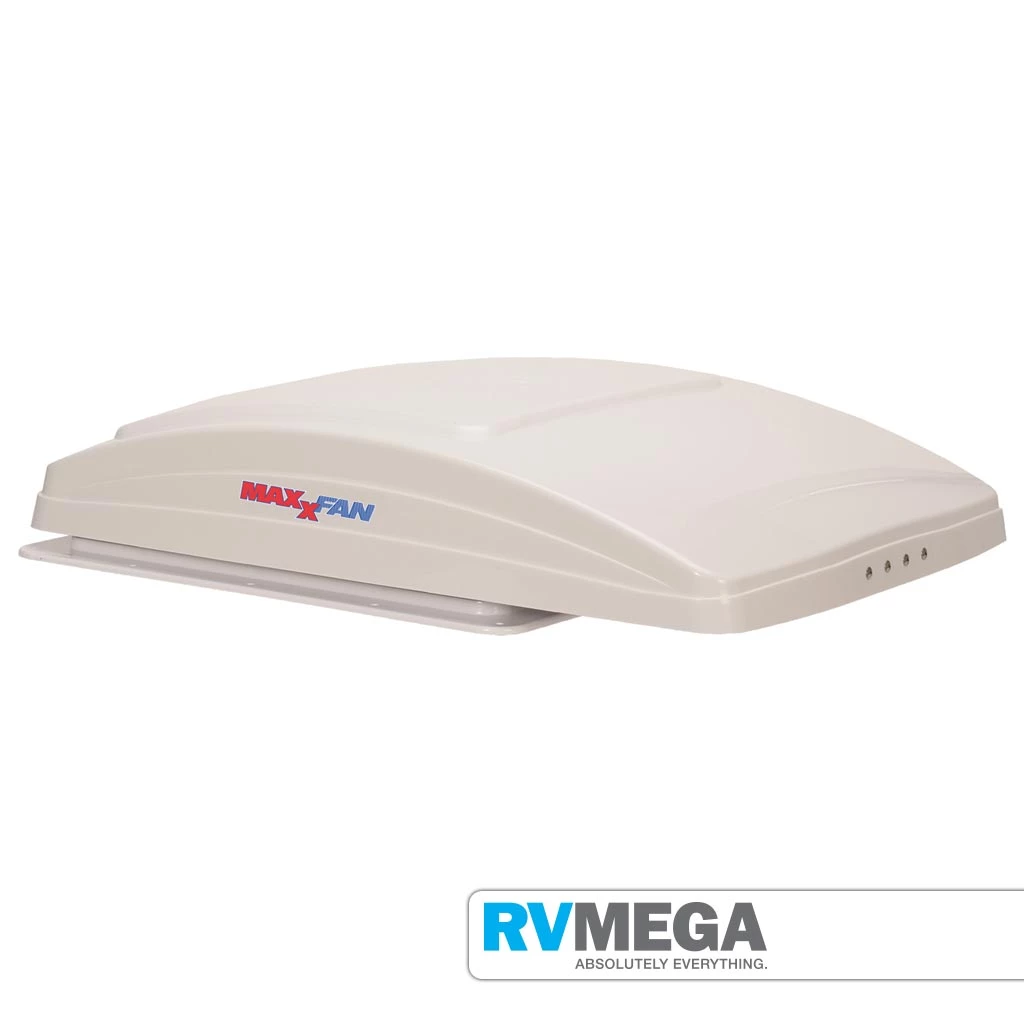

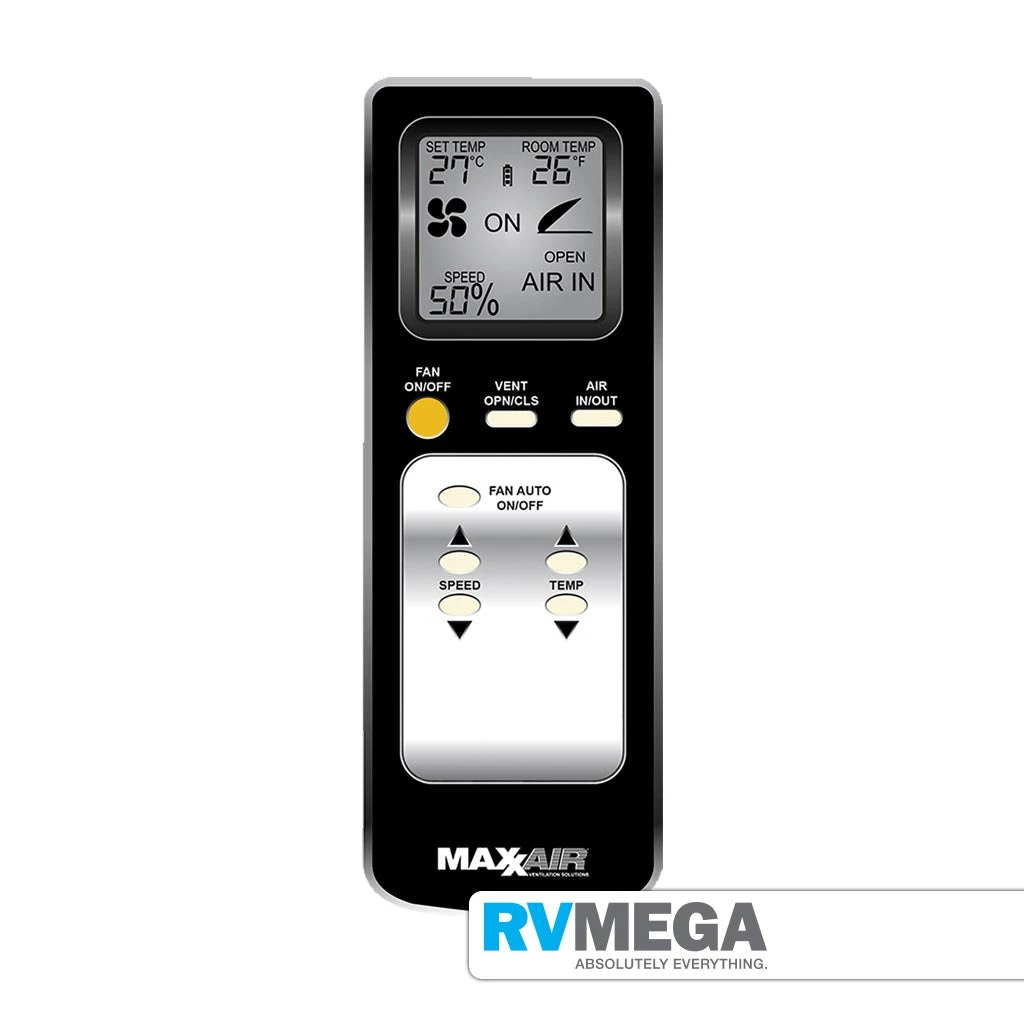

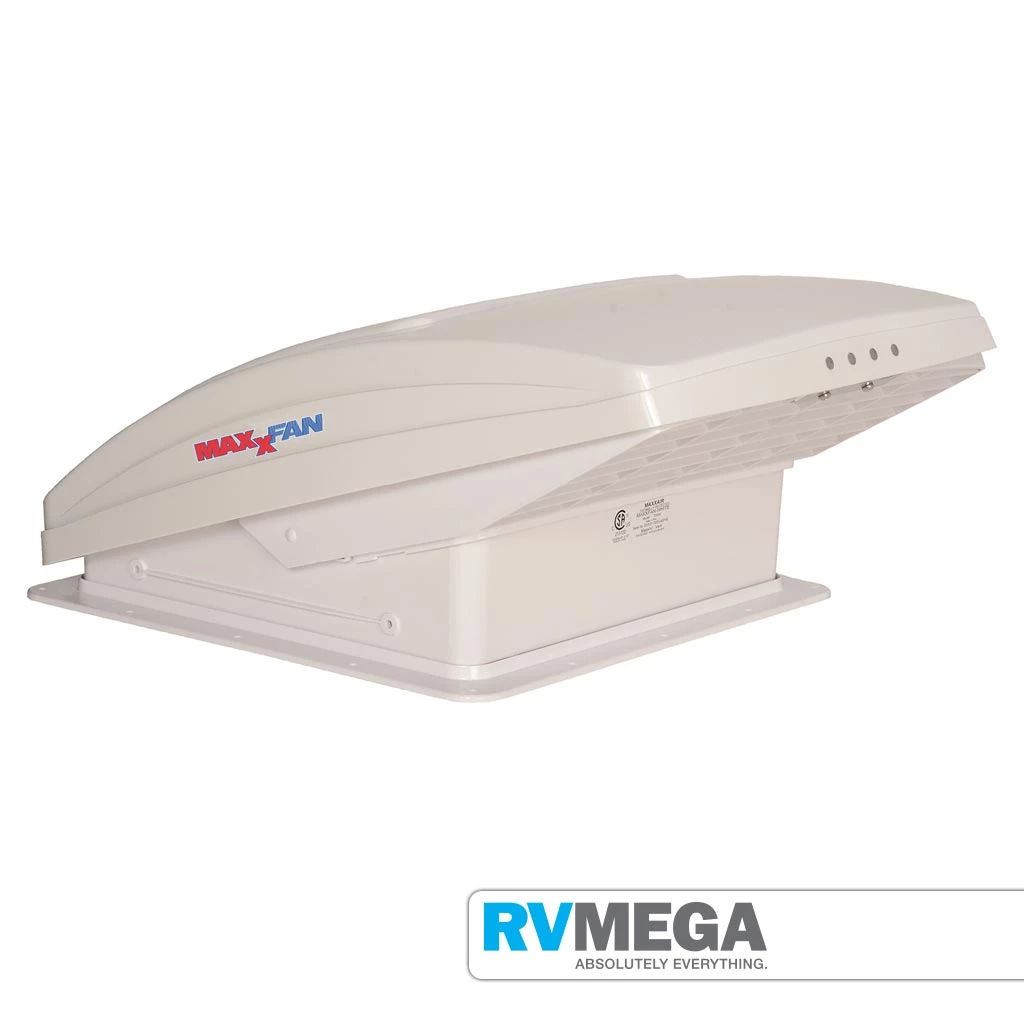

MaxxFan Deluxe with Rain Dome, Thermostat, Power Lift and Remote

Dimensions

• Open: W421 x H230 x D589mmMaxxFan Deluxe with Rain Dome, Thermostat, Power Lift and Remote – RV ventilation has never been easier than with a MaxxFan. The MaxxFan Plus and the MaxxFan Deluxe, both have a manual option and an electric opening option, and they also have a ceiling mounted control panel that is easy to use and read.

Dimensions

• Open: W421 x H230 x D589mm

• Closed: W421 x H128 x D589mm

• Roof thickness: 25-90mm

Features

• Removable flyscreen – simply twist the L-clamps and remove for cleaning!

• Installs onto all standard 14” x 14” (356mm x 356mm) roof openings

• Powerful 10-speed fan motor

• Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes

• Provides over 900CFM, keeping your RV cool and comfortable

• Twin lifting arms limit vibrations cause by wind when in the ‘open’ position

• Installed weight: 5.4kg

Amp Draw on High 2.5A

Amp Draw on Low 0.16A

• Closed: W421 x H128 x D589mm

• Roof thickness: 25-90mm

Features

• Removable flyscreen – simply twist the L-clamps and remove for cleaning!

• Installs onto all standard 14” x 14” (356mm x 356mm) roof openings

• Powerful 10-speed fan motor

• Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes

• Provides over 900CFM, keeping your RV cool and comfortable

• Twin lifting arms limit vibrations cause by wind when in the ‘open’ position

• Installed weight: 5.4kg

Amp Draw on High 2.5A

Amp Draw on Low 0.16A
