Electrical & Lighting Power Train Battery Charger 4 Amp 24V Automatic 3 Stage

The Power Train PTC24V4AL battery charger is a fully automatic 3 stage pulse battery charger designed to effectively charge and maintain all 24V conventional Calcium, GEL, and Lead antimony / AGM batteries.

The PTC24V4A battery charger uses a on board micro-chip to control its unique pulse algorithm for the charging cycle, this helps reduce the oxidation on the battery plates and evens the consistency of the electrolyte, minimises temperature whilst charging, and recovers the battery capacity and extends battery life.

This Automatic charger can remain connected to the battery without risk of overcharging, as the internal electronics will stop the charging when the battery is fully charged. Once the battery is fully charged, the charger monitors the battery voltage and continues to top up & to maintain the battery, keeping it fully charged and ready for use.

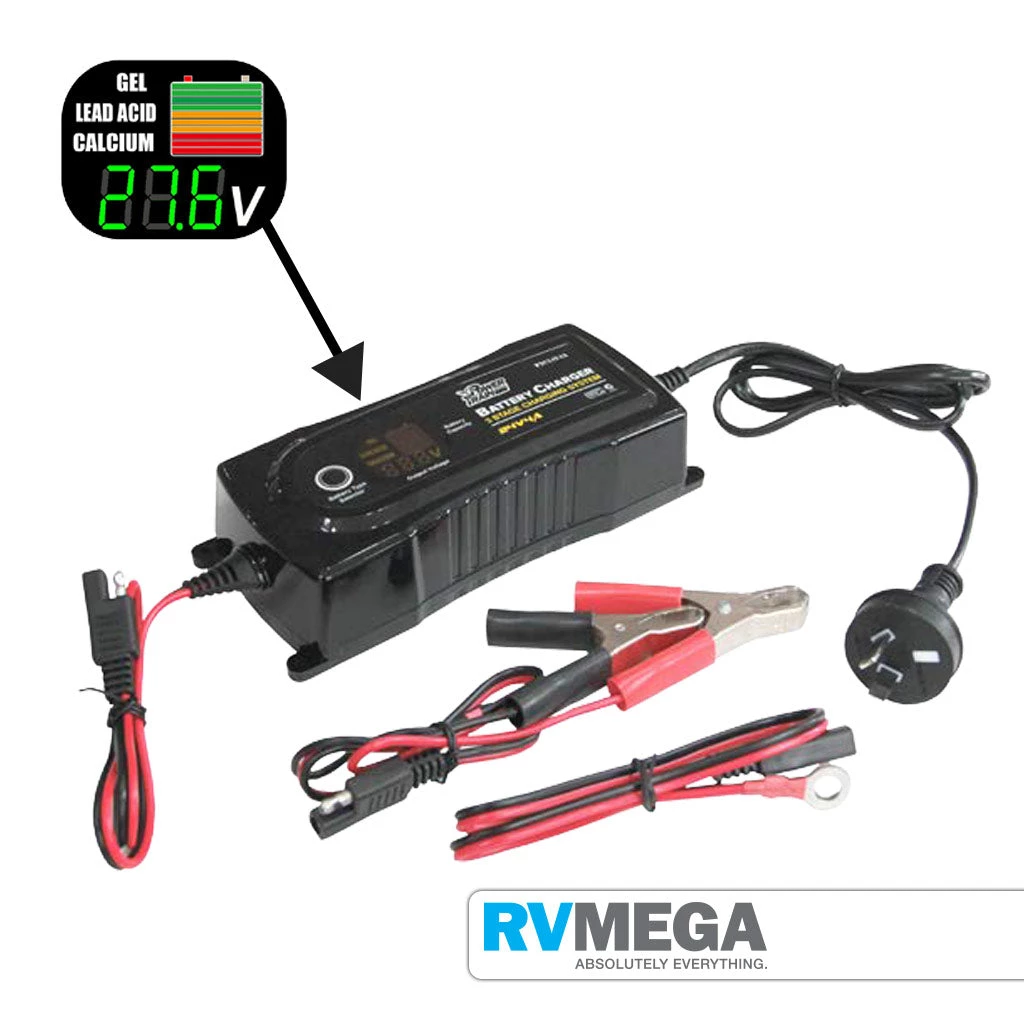

The PTC24V4AL is packaged with standard charger clips, along with an interchangeable ring terminal charging lead.

Features

• Heavy duty design

• CE, EMC, SAA & C-Tick Approved

• Selectable for GEL, Lead Acid / AGM and Calcium charging modes

• Charging state LED indicators

• Charges severely drained batteries and can recover the capacity of a severely discharged battery

• Fully automatic 3 stage charging system

• Desulphation mode with pulses and soft start for severely discharged batteries

• Maintenance stage pulse charging increases battery increases battery life and gives increased performance

• The charger can be connected and left running for months, without fear of overcharging or damaging the battery

• Reverse polarity protection, short circuit protection, overload protection, high temperature protection

• Compact design with mounting holes for permanent fitting if required

Output Current 4 Amp

Output Voltage (Nom) 24 Volt

Input Voltage 175-255VAC / 50-60Hz

3 Charge Stages:

• Boost charge: Maximum Current until preset voltage reached

• Absorption: Constant voltage with automatic amperage control

• Maintain / Float: Pulse to maintain maximum charge

• Output Voltage – Bulk 28.6V Gel / 31.2V Cal / 29.4V LA & AGM

• Output Voltage – Absorption 28.6V Gel / 31.2V Cal / 29.4V LA & AGM

• Output Voltage – Float 26.6V Gel / 27.4V Cal / 27.4V LA & AGM

• Battery Range – Charge Up to 350CCA or 80A/h

• Battery Range – Maintain Up to 700CCA or 150A/h
