BMPRO Miniboost Pro DC-DC Charger 10-16vDC, 30A With 30A MPPT Re

Rapidly charge your deep cycle battery while you drive

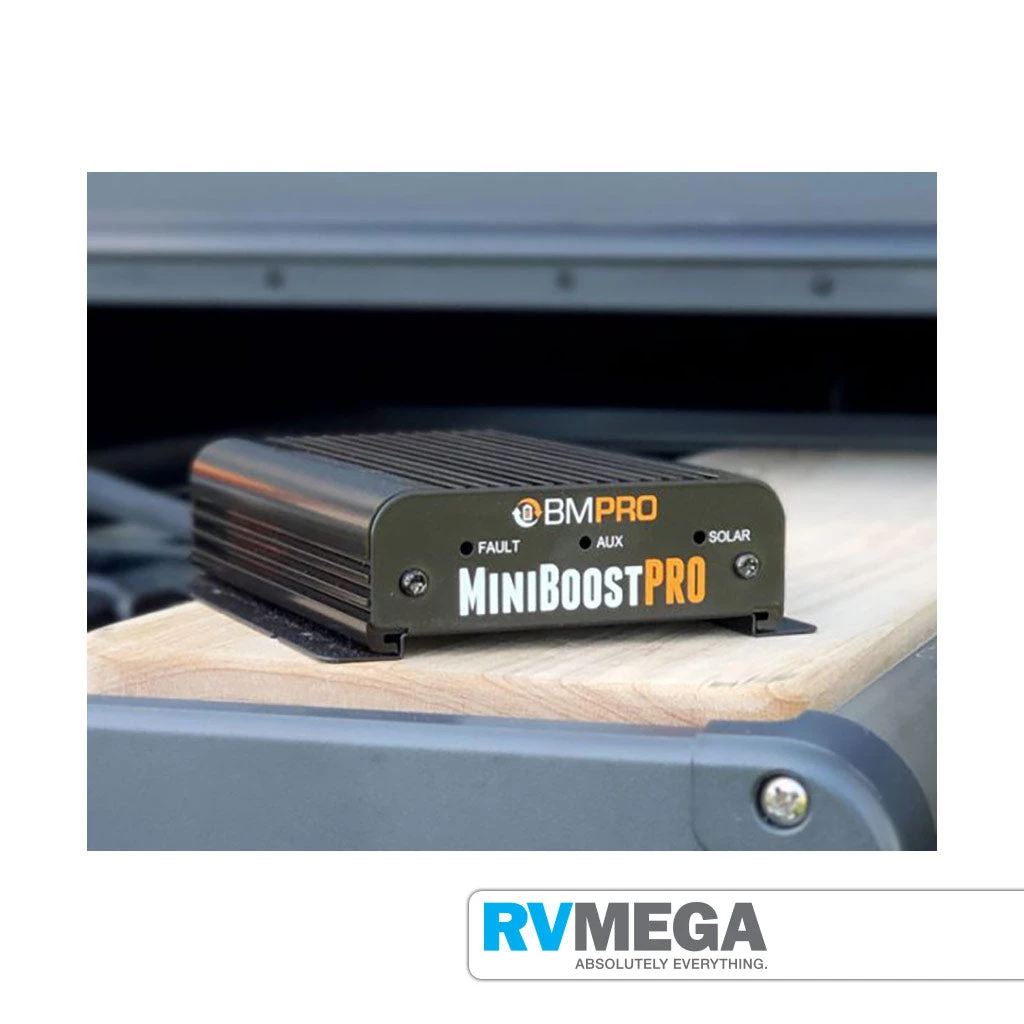

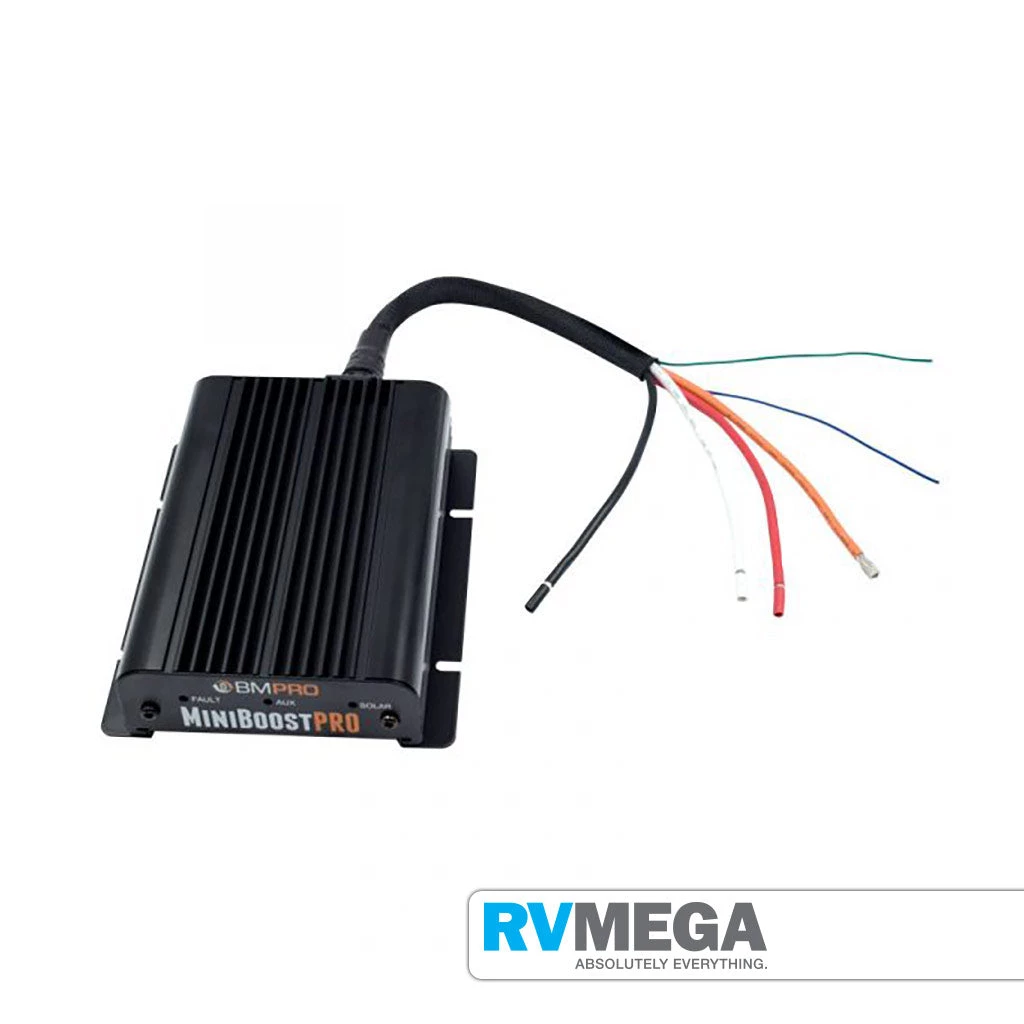

BMPRO’s MiniBoostPRO is a compact DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system.

Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators.

Key features:

• 30A multi-stage DC-DC charger

• Dual input solar/aux up to 30A

• DC-DC Start to House Battery Lithium Profile (Note Solar Input Not compatible with Lithium Batteries)

• Multi battery chemistry selector

• Suitable for modern smart alternators

• BMPRO BP35 and J35 compatible

• BMPRO signature durability and ease of use

• 2 year warranty

**Specifications;88

• Auxiliary Input Voltage 9-15V DC

• Solar Input Voltage 9-25V

• DC Output Voltage Gel: 14.2V, AGM/Wet: 14.4.V, LiFePO4: 14.6V Float Voltage 13.6V

• Output Current Auxiliary Bypass: max. 30A; Auxiliary Boost: max. 22A; Solar Charging: max. 30A; Blending Charging: max. 30A Quiescent Current Draw Auxiliary/Primary Battery: < 25mA; Secondary Battery: < 18mA

• Operating Temperature -20°C to 80°C

• Dimensions 160mm x 131mm x 41mm

• IP Rating IP20

• Standards RCM Approval, EMC CISPR 11: 2015 Class B Battery Chemistry Gel, AGM/Wet, LiFePO4

• Note, Solar input is not compatible with Lithium batteries. Start battery to House battery DCDC Charging is compatible – Use separate Solar Regulator if Lithium battery is used.
