BMPRO 2 Stage DC To DC Charger 10-16V DC, 8-18 Amp Electrical & Lighting

In-vehicle battery charger for your RV

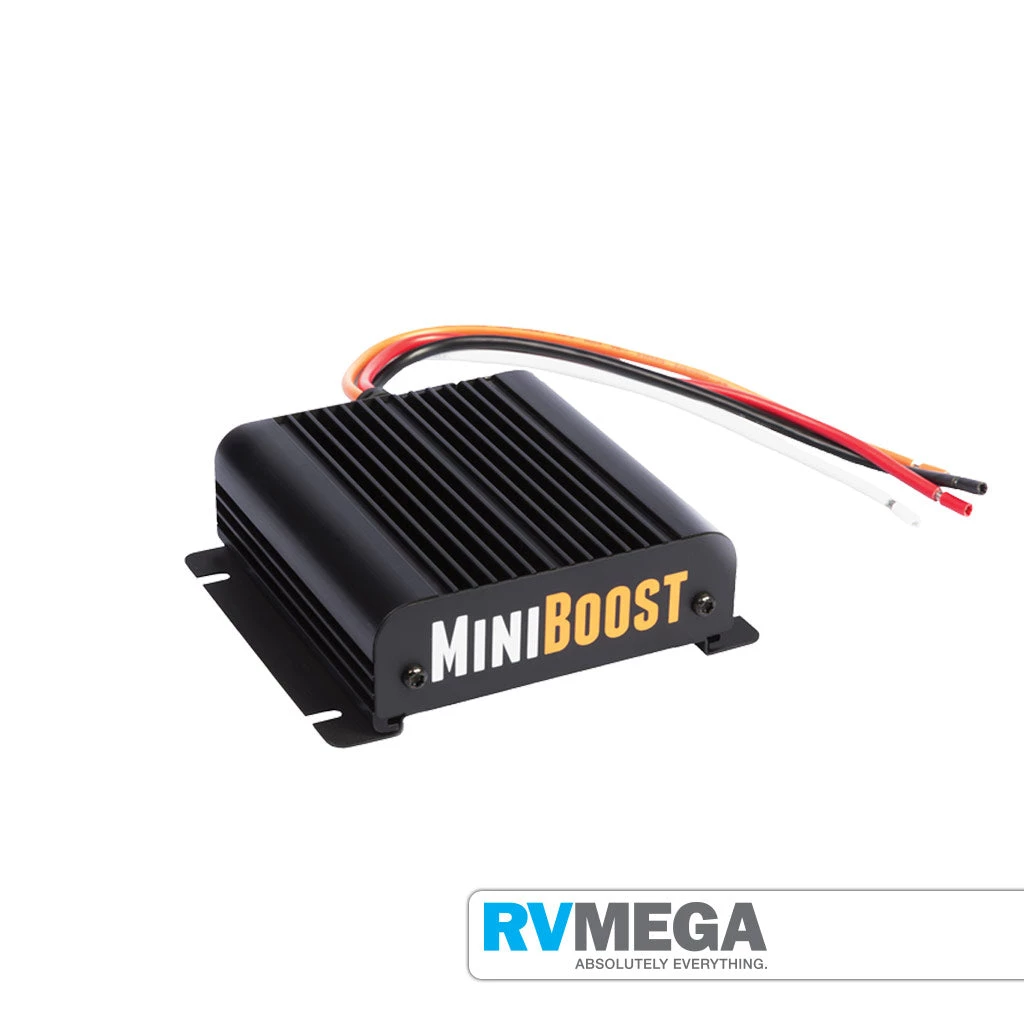

BMPRO’s MiniBoost is a compact DC to DC charger/booster specially designed for recreational vehicles. Charge your caravan or campertrailer’s house battery from the towing vehicle’s electrical system, even if the voltage delivered from the tow vehicle is lower than required for a recharge.

The MiniBoost DC to DC charger provides a 2-stage charging profile. It delivers an efficient and controlled current until the auxiliary battery is charged. Miniboost functions when wired directly to most 12V Lead Acid batteries. It has been designed to work with BMPRO’s BatteryPlus35 and J35 systems. The MiniBoost is not a power supply and must be connected to a battery.

Features

• DC-DC charger specifically for RV applications

• Input over-current and reverse voltage protection

• Output over-current & short circuit protection

• Output reverse connection protection

• BMPRO signature durability and ease of use

• Battery type: 12V lead acid

• Battery chemistry: AGM, Gel, Calcium or Wet

• Operating temperature: 0-50 C Ambient

Output 14.4V (constant voltage)// 8-18A (constant current), depending on input voltage

Input 10-16V
