AL-KO Jockey Wheel With Swivel Bracket

Premium Jockey Wheel 200mm Lock Pin Swivel Small Bracket

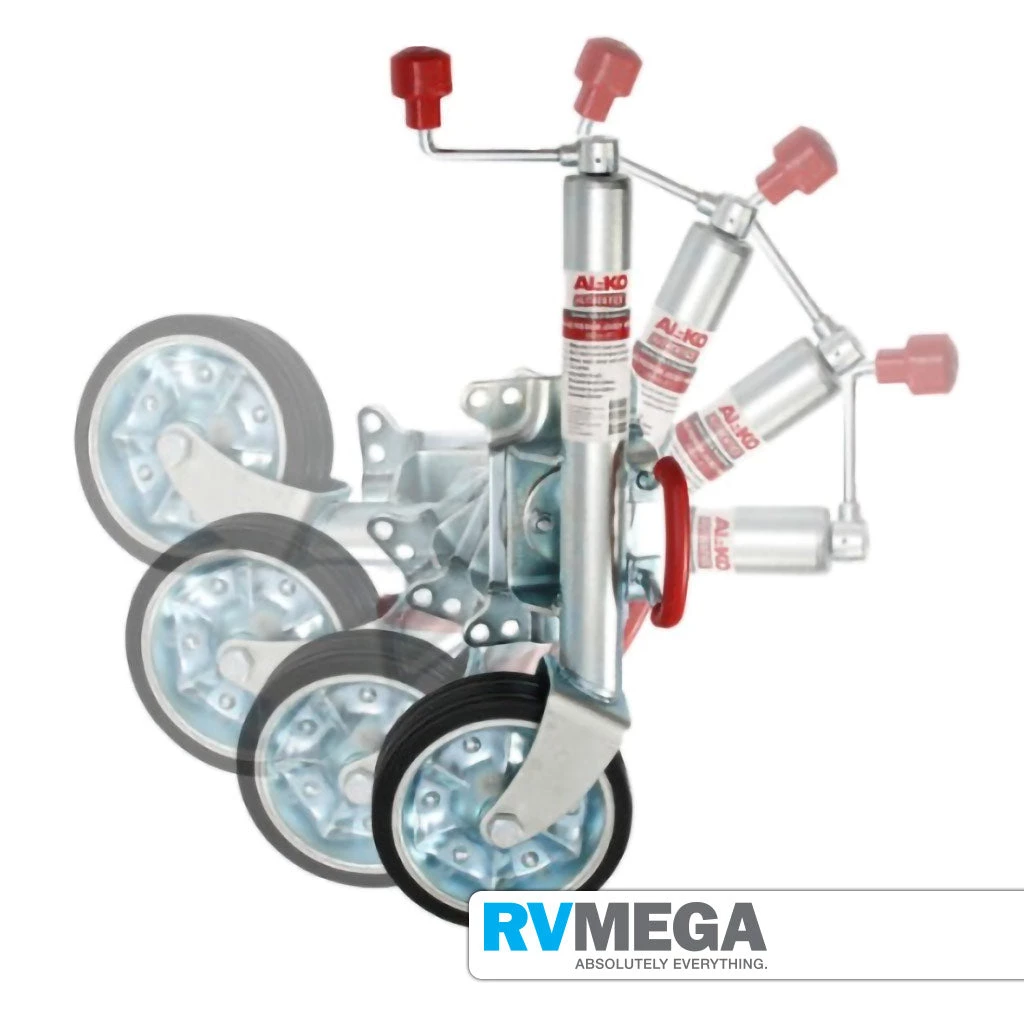

Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable traveling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. Ideal for marine use.

Dimensions

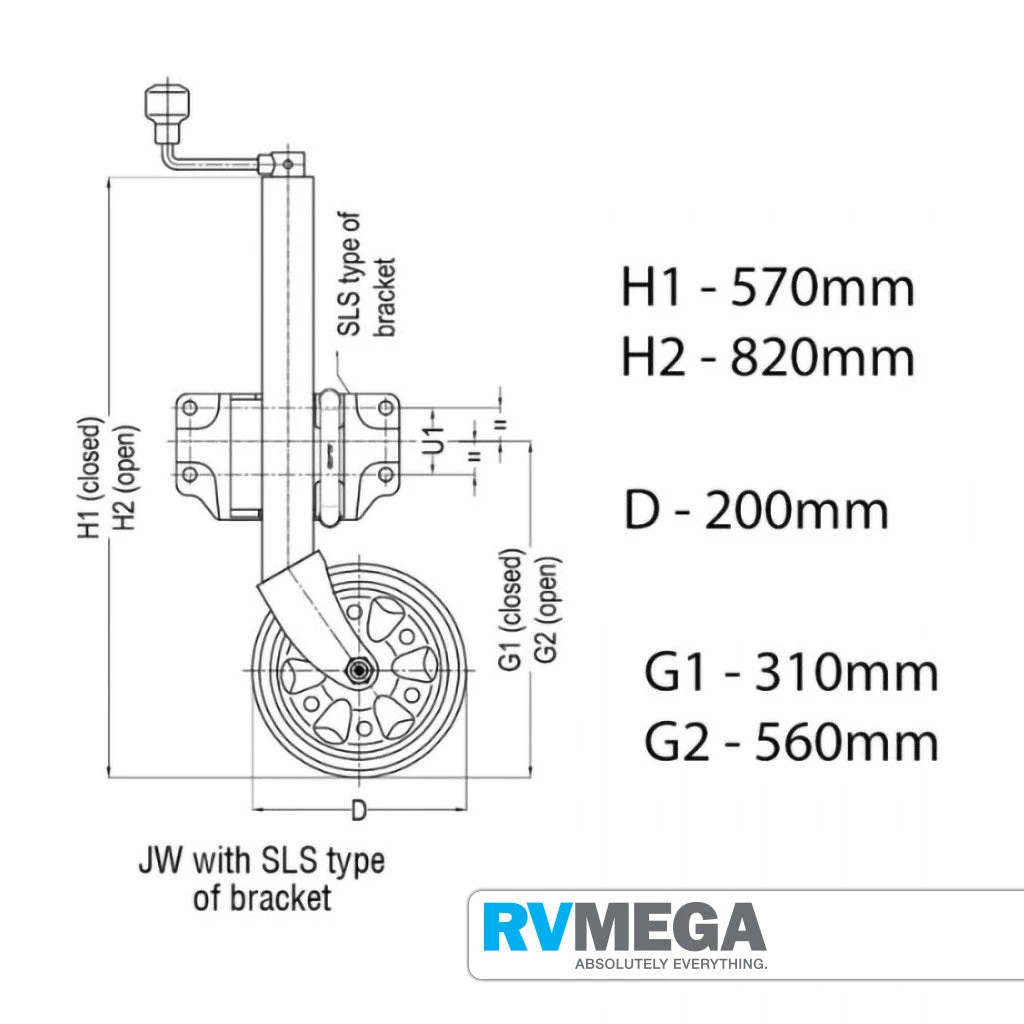

• Please see image for dimensions

Features

• Angle tube prevents rotation when stowed

• Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces

• Swivel bracket can be either welded or bolted to the drawbar

• A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar

• Surface finish: zinc plated – lasting protection

• Static capacity: 400kg

• Weight: 8.5kg
